| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_033T01_9000006608_59346cztM0_level2.fits | modeM0/AS1A14_033T01_9000006608_59346cztM0_level2_quad_clean.evt |
| Size (bytes) | 806,385,600 | 111,672,000 |
| Size | 769.0 MB | 106.5 MB |
| Events in quadrant A | 3,824,662 | 816,912 |
| Events in quadrant B | 4,661,306 | 870,901 |
| Events in quadrant C | 4,310,586 | 792,835 |
| Events in quadrant D | 16,399,754 | 315,729 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17889 | 0 |
| B | 0 | 19942 | 4 |
| C | 0 | 18896 | 0 |
| D | 0 | 54467 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8418 | 28 | 0.332621% |
| B | 8417 | 275 | 3.267197% |
| C | 8418 | 65 | 0.772155% |
| D | 8418 | 5186 | 61.606082% |

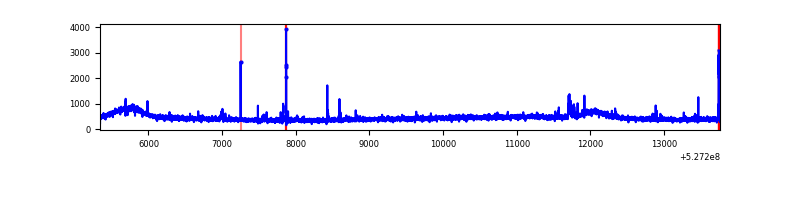

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8418 | 8418 | 13 | 13 | 0.15% | 0.15% |  |
| B | 8417 | 8417 | 116 | 116 | 1.38% | 1.38% |  |
| C | 8418 | 8418 | 30 | 30 | 0.36% | 0.36% |  |
| D | 8418 | 8418 | 4542 | 4542 | 53.96% | 53.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 68479 | 290.05 | 952 | 927 | 232.9 |
| A | 3 | 245 | 31754 | 132.36 | 952 | 927 | 232.9 |
| A | 3 | 14 | 22755 | 93.72 | 952 | 927 | 232.9 |
| B | 4 | 236 | 310247 | 1517.49 | 944 | 907 | 203.8 |
| B | 4 | 171 | 139798 | 681.34 | 944 | 907 | 203.8 |
| B | 5 | 185 | 81940 | 397.51 | 944 | 907 | 203.8 |
| C | 3 | 233 | 251417 | 974.65 | 942 | 938 | 257.0 |
| C | 12 | 252 | 172969 | 669.4 | 942 | 938 | 257.0 |
| C | 14 | 254 | 52743 | 201.58 | 942 | 938 | 257.0 |
| D | 12 | 110 | 13005183 | 63256.47 | 719 | 685 | 205.6 |
| D | 11 | 129 | 188764 | 914.85 | 719 | 685 | 205.6 |
| D | 3 | 12 | 154211 | 746.78 | 719 | 685 | 205.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

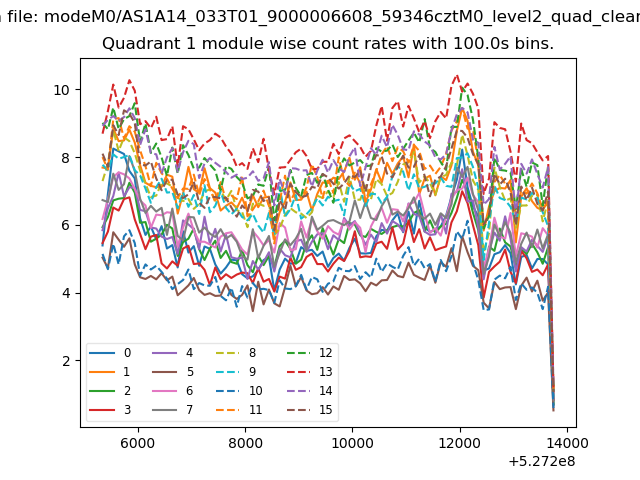

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

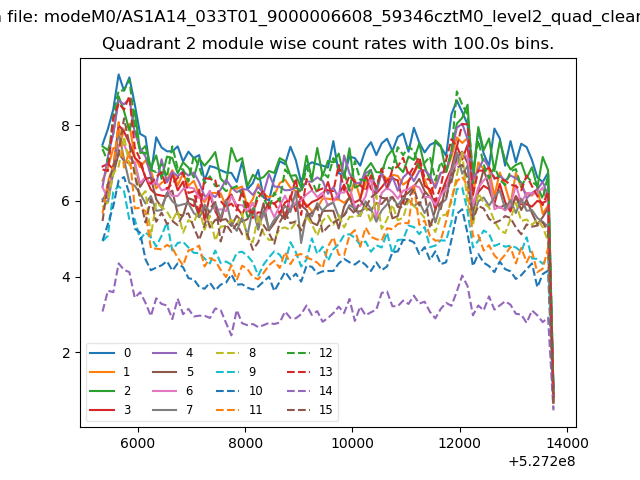

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

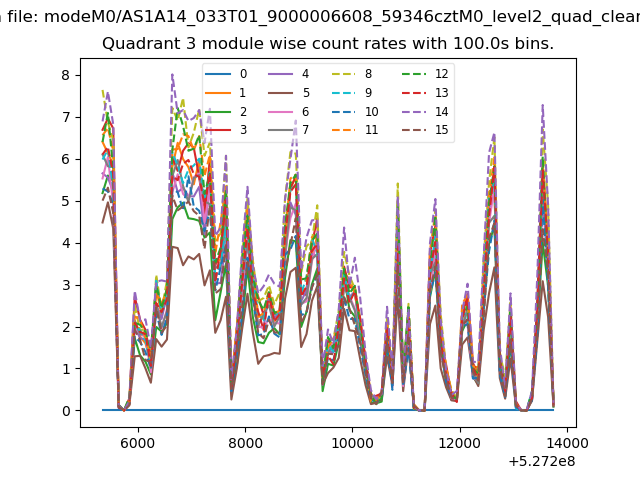

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

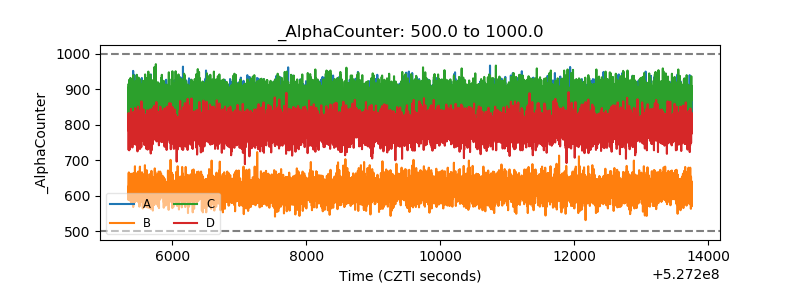

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

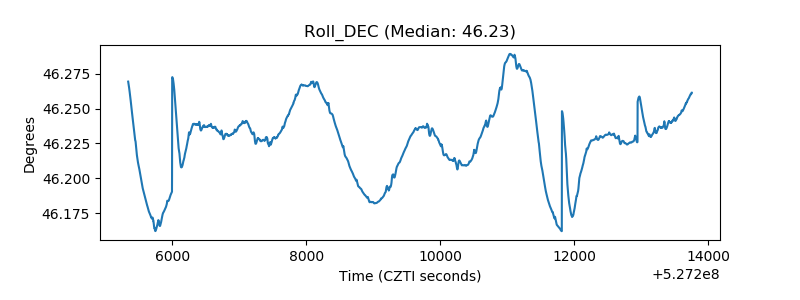

| _Roll_DEC |  |

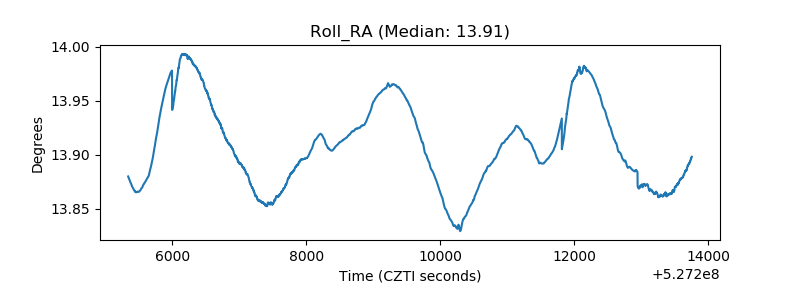

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

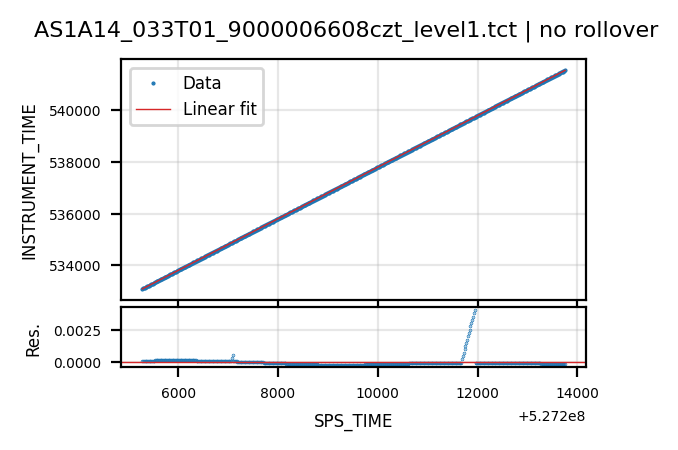

| Tct |  |  |
