| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_033T01_9000006608_59376cztM0_level2.fits | modeM0/AS1A14_033T01_9000006608_59376cztM0_level2_quad_clean.evt |
| Size (bytes) | 702,077,760 | 109,601,280 |
| Size | 669.6 MB | 104.5 MB |
| Events in quadrant A | 11,937,363 | 466,256 |
| Events in quadrant B | 4,084,543 | 840,314 |
| Events in quadrant C | 4,055,218 | 761,897 |
| Events in quadrant D | 5,278,875 | 683,473 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41195 | 0 |
| B | 0 | 18177 | 0 |
| C | 0 | 18252 | 0 |
| D | 0 | 21665 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8150 | 3220 | 39.509202% |
| B | 8151 | 154 | 1.889339% |
| C | 8151 | 85 | 1.042817% |
| D | 8151 | 383 | 4.698810% |

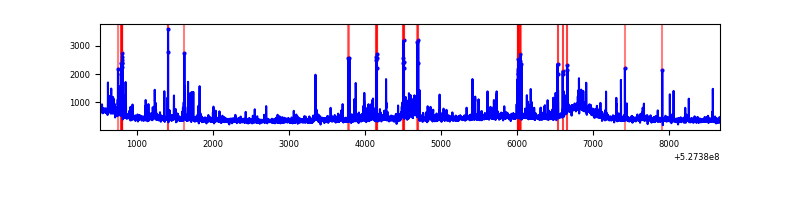

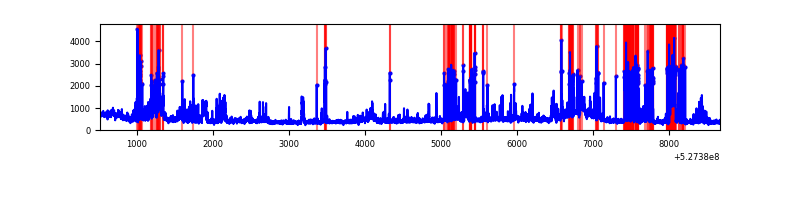

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8149 | 8149 | 3025 | 3025 | 37.12% | 37.12% |  |
| B | 8151 | 8151 | 39 | 39 | 0.48% | 0.48% |  |
| C | 8151 | 8151 | 45 | 45 | 0.55% | 0.55% |  |
| D | 8151 | 8151 | 342 | 342 | 4.20% | 4.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 8985984 | 51249.34 | 711 | 693 | 175.3 |
| A | 14 | 238 | 137347 | 779.43 | 711 | 693 | 175.3 |
| A | 10 | 251 | 27698 | 154.03 | 711 | 693 | 175.3 |
| B | 4 | 236 | 129229 | 667.37 | 893 | 856 | 192.4 |
| B | 5 | 185 | 128122 | 661.61 | 893 | 856 | 192.4 |
| B | 4 | 171 | 116767 | 602.58 | 893 | 856 | 192.4 |
| C | 6 | 223 | 177045 | 724.97 | 887 | 882 | 243.0 |
| C | 2 | 12 | 103094 | 420.64 | 887 | 882 | 243.0 |
| C | 3 | 233 | 96753 | 394.54 | 887 | 882 | 243.0 |
| D | 1 | 3 | 835081 | 3451.96 | 856 | 820 | 241.7 |
| D | 12 | 110 | 762965 | 3153.56 | 856 | 820 | 241.7 |
| D | 5 | 32 | 92953 | 381.22 | 856 | 820 | 241.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

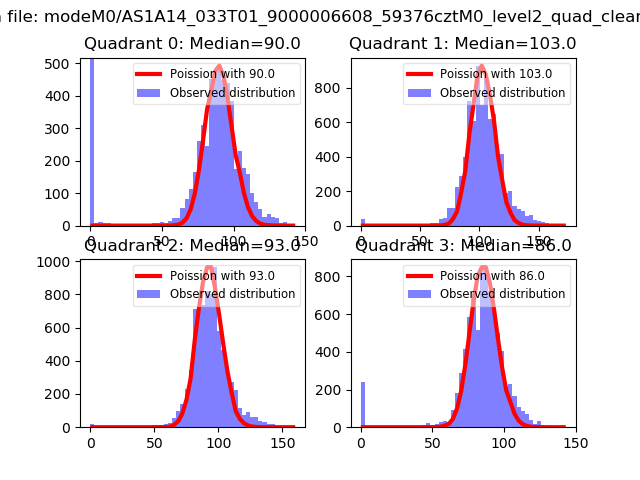

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

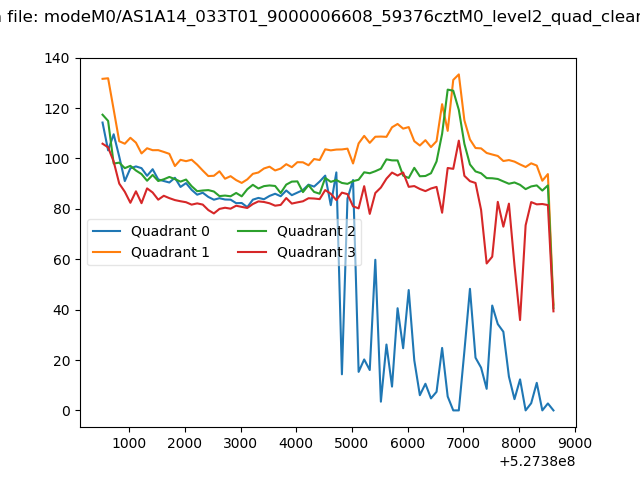

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

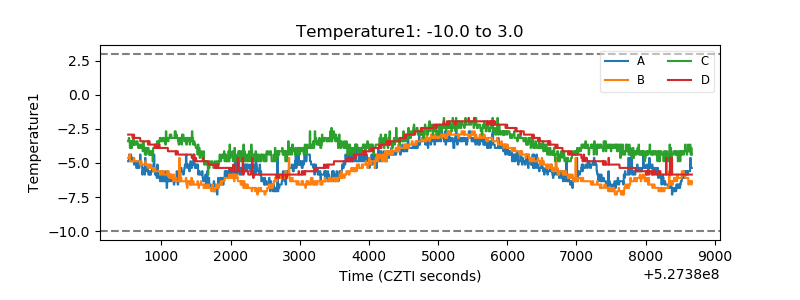

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

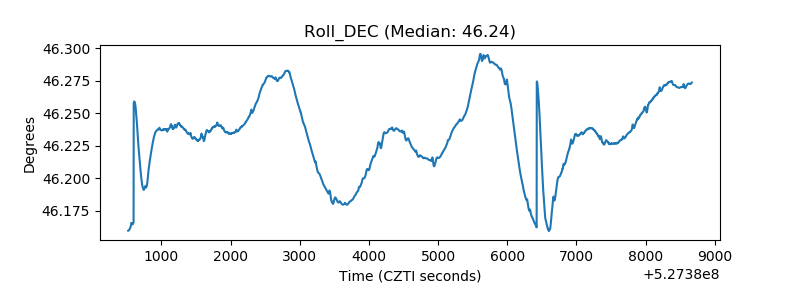

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

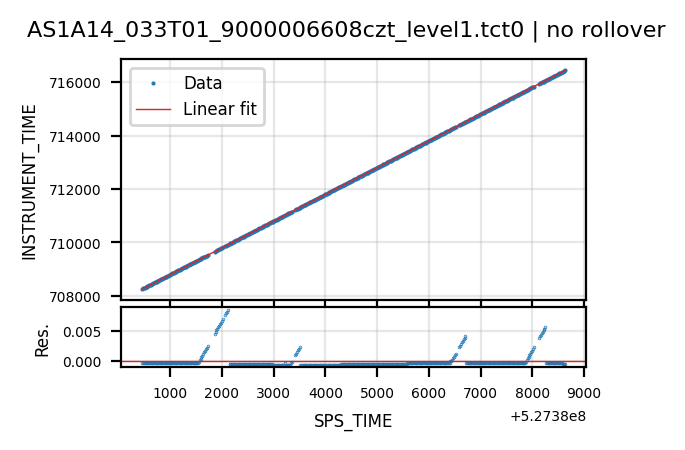

| Tct |  |  |
