| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_033T01_9000006608_59390cztM0_level2.fits | modeM0/AS1A14_033T01_9000006608_59390cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,076,160 | 125,343,360 |
| Size | 496.0 MB | 119.5 MB |
| Events in quadrant A | 3,849,614 | 814,440 |
| Events in quadrant B | 5,554,433 | 871,343 |
| Events in quadrant C | 4,261,178 | 793,818 |
| Events in quadrant D | 4,930,510 | 729,006 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18020 | 0 |
| B | 0 | 22518 | 0 |
| C | 0 | 18904 | 0 |
| D | 0 | 20884 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8442 | 18 | 0.213220% |
| B | 8443 | 321 | 3.801966% |
| C | 8443 | 85 | 1.006751% |
| D | 8443 | 212 | 2.510956% |

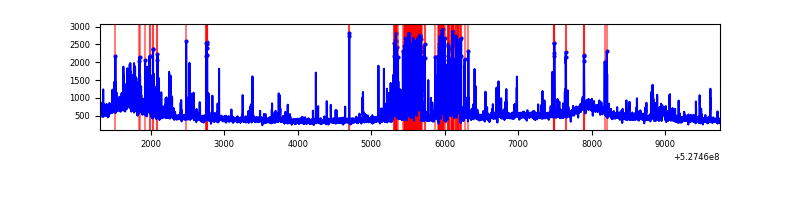

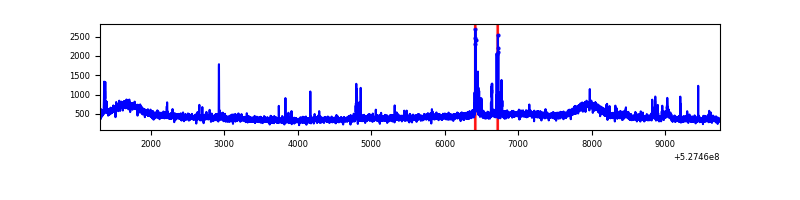

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8441 | 8441 | 8 | 8 | 0.09% | 0.09% |  |
| B | 8442 | 8442 | 153 | 153 | 1.81% | 1.81% |  |
| C | 8442 | 8442 | 68 | 68 | 0.81% | 0.81% |  |
| D | 8442 | 8442 | 191 | 191 | 2.26% | 2.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 102325 | 433.91 | 947 | 921 | 233.7 |
| A | 10 | 251 | 73395 | 310.12 | 947 | 921 | 233.7 |
| A | 3 | 137 | 12192 | 48.23 | 947 | 921 | 233.7 |
| B | 10 | 128 | 802028 | 3980.66 | 938 | 901 | 201.3 |
| B | 5 | 185 | 670065 | 3324.96 | 938 | 901 | 201.3 |
| B | 4 | 236 | 214982 | 1063.73 | 938 | 901 | 201.3 |
| C | 2 | 12 | 346694 | 1338.71 | 939 | 933 | 258.3 |
| C | 14 | 254 | 69065 | 263.79 | 939 | 933 | 258.3 |
| C | 6 | 223 | 58257 | 221.95 | 939 | 933 | 258.3 |
| D | 12 | 2 | 607243 | 2325.8 | 919 | 880 | 260.7 |
| D | 12 | 110 | 405623 | 1552.46 | 919 | 880 | 260.7 |
| D | 6 | 239 | 135272 | 515.48 | 919 | 880 | 260.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

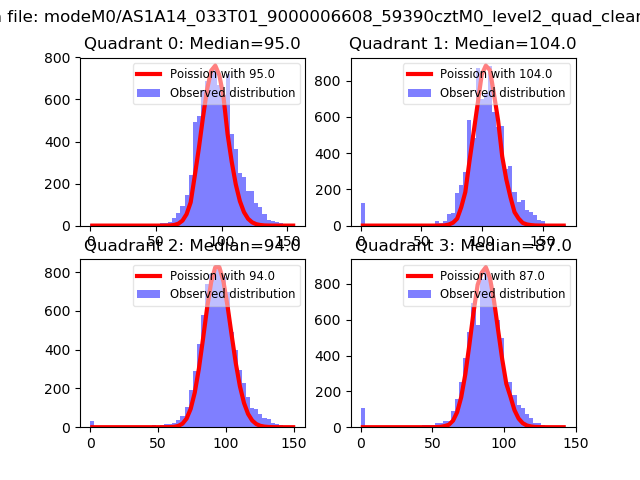

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

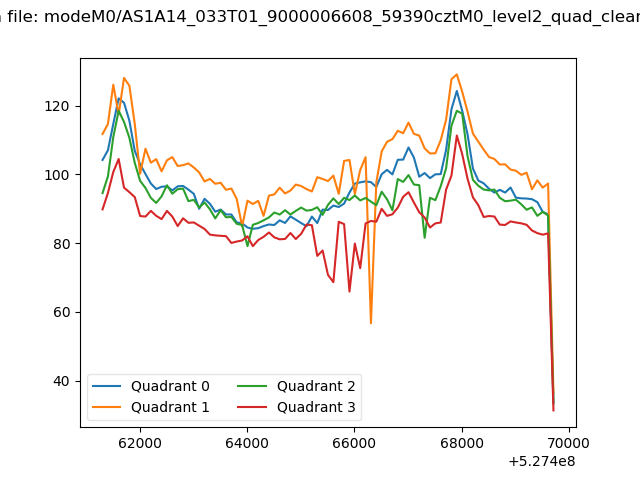

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

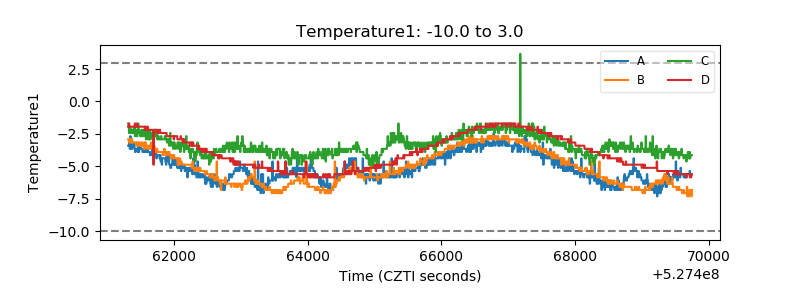

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

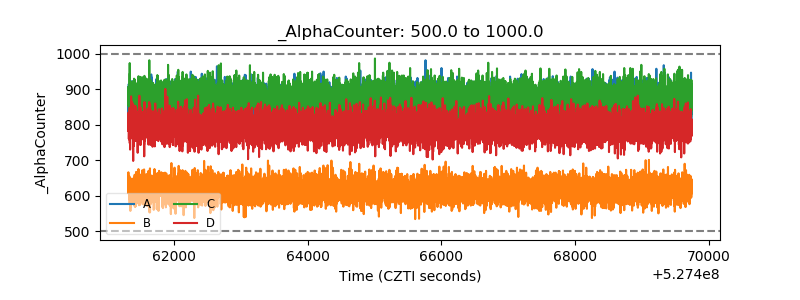

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

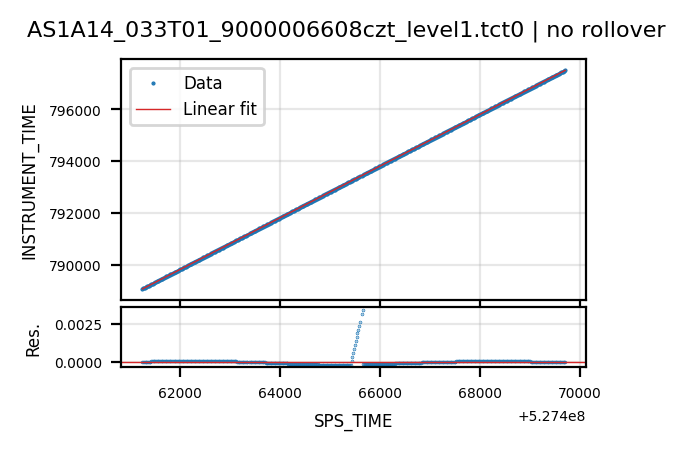

| Tct |  |  |
