| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_033T01_9000006608_59419cztM0_level2.fits | modeM0/AS1A14_033T01_9000006608_59419cztM0_level2_quad_clean.evt |
| Size (bytes) | 603,527,040 | 115,784,640 |
| Size | 575.6 MB | 110.4 MB |
| Events in quadrant A | 4,907,717 | 747,755 |
| Events in quadrant B | 5,701,045 | 803,575 |
| Events in quadrant C | 5,264,596 | 732,291 |
| Events in quadrant D | 5,842,683 | 662,853 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20541 | 1 |
| B | 0 | 22517 | 0 |
| C | 0 | 21551 | 0 |
| D | 0 | 23156 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8048 | 331 | 4.112823% |
| B | 8050 | 584 | 7.254658% |
| C | 8050 | 404 | 5.018634% |
| D | 8049 | 487 | 6.050441% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8049 | 8049 | 230 | 230 | 2.86% | 2.86% |  |
| B | 8050 | 8050 | 444 | 444 | 5.52% | 5.52% |  |
| C | 8050 | 8050 | 251 | 251 | 3.12% | 3.12% |  |
| D | 8050 | 8050 | 317 | 317 | 3.94% | 3.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 695726 | 3168.19 | 886 | 863 | 219.3 |
| A | 0 | 117 | 442538 | 2013.79 | 886 | 863 | 219.3 |
| A | 3 | 14 | 227769 | 1034.56 | 886 | 863 | 219.3 |
| B | 4 | 236 | 1443712 | 7573.66 | 881 | 848 | 190.5 |
| B | 5 | 185 | 380503 | 1992.83 | 881 | 848 | 190.5 |
| B | 0 | 157 | 173434 | 905.91 | 881 | 848 | 190.5 |
| C | 2 | 12 | 1388344 | 5804.38 | 874 | 867 | 239.0 |
| C | 12 | 112 | 143404 | 596.29 | 874 | 867 | 239.0 |
| C | 4 | 5 | 118513 | 492.16 | 874 | 867 | 239.0 |
| D | 12 | 110 | 1154980 | 4797.61 | 853 | 818 | 240.6 |
| D | 6 | 239 | 982401 | 4080.23 | 853 | 818 | 240.6 |
| D | 2 | 120 | 127282 | 525.68 | 853 | 818 | 240.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

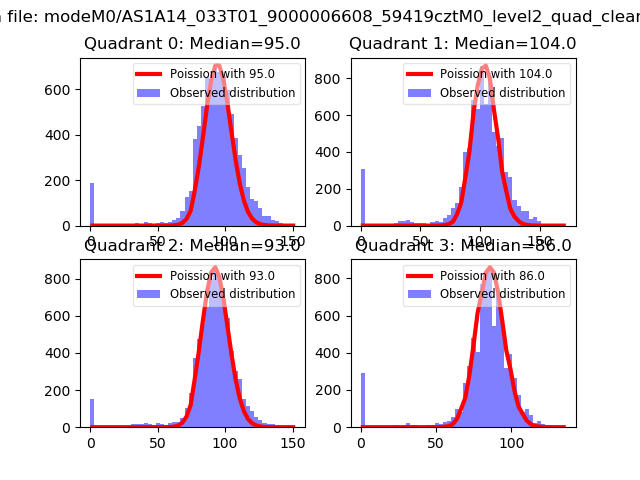

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
