| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_028T01_9000000724_05603cztM0_level2.evt | modeM0/AS1A02_028T01_9000000724_05603cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,644,160 | 87,952,320 |
| Size | 487.0 MB | 83.9 MB |
| Events in quadrant A | 3,184,792 | 563,567 |
| Events in quadrant B | 3,460,919 | 565,819 |
| Events in quadrant C | 3,182,248 | 553,909 |
| Events in quadrant D | 5,180,302 | 511,015 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13942 | 3 |
| B | 0 | 14674 | 2 |
| C | 0 | 13886 | 2 |
| D | 0 | 19871 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6738 | 103 | 1.528644% |
| B | 6738 | 109 | 1.617691% |
| C | 6738 | 98 | 1.454438% |
| D | 6738 | 364 | 5.402196% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7758 | 6739 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7758 | 6739 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7758 | 6739 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7758 | 6739 | 220 | 220 | 2.84% | 3.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 14482 | 82.32 | 823 | 806 | 166.1 |
| A | 12 | 194 | 8043 | 43.56 | 823 | 806 | 166.1 |
| A | 0 | 226 | 8006 | 43.34 | 823 | 806 | 166.1 |
| B | 15 | 204 | 240594 | 1509.0 | 827 | 806 | 158.9 |
| B | 12 | 111 | 15036 | 89.55 | 827 | 806 | 158.9 |
| B | 4 | 81 | 14940 | 88.95 | 827 | 806 | 158.9 |
| C | 1 | 16 | 45367 | 241.95 | 803 | 809 | 184.2 |
| C | 13 | 61 | 6366 | 30.17 | 803 | 809 | 184.2 |
| C | 7 | 247 | 2626 | 9.87 | 803 | 809 | 184.2 |
| D | 2 | 63 | 1839676 | 9495.11 | 794 | 768 | 193.7 |
| D | 10 | 15 | 138082 | 709.01 | 794 | 768 | 193.7 |
| D | 2 | 136 | 131230 | 673.63 | 794 | 768 | 193.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

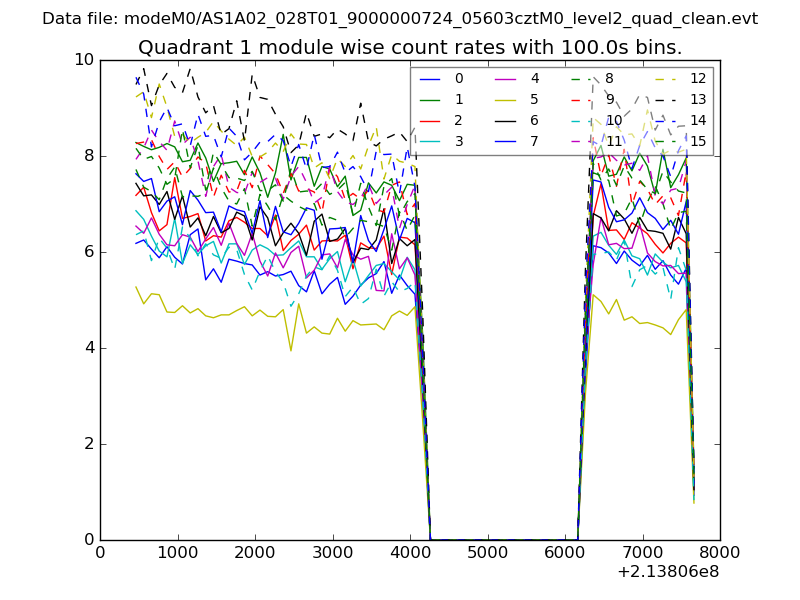

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

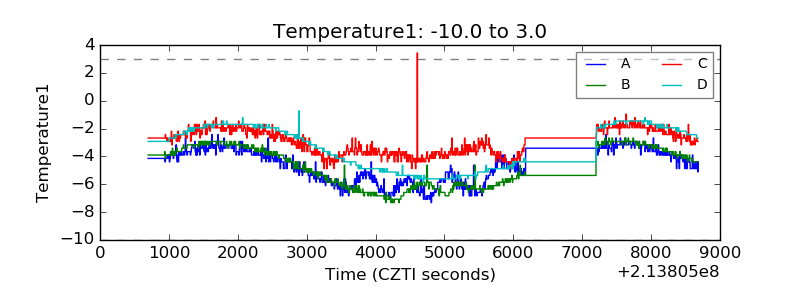

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

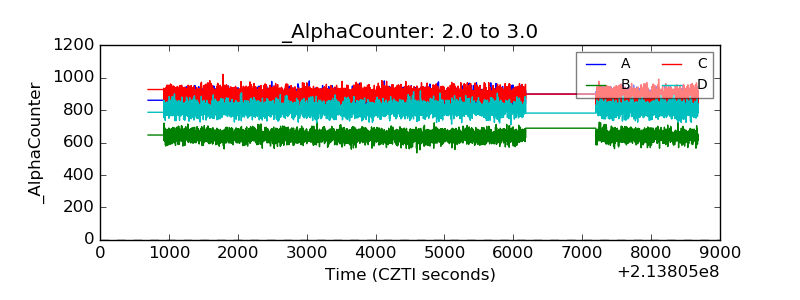

| Alpha Counter |  |

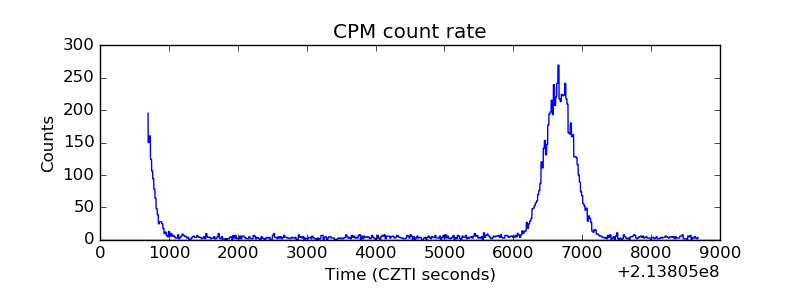

| _CPM_Rate |  |

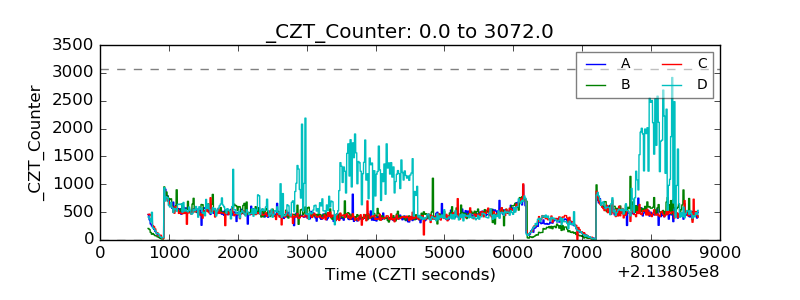

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
