| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_132T01_9000001068_07772cztM0_level2.evt | modeM0/AS1A02_132T01_9000001068_07772cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,602,560 | 94,101,120 |
| Size | 445.9 MB | 89.7 MB |
| Events in quadrant A | 3,157,691 | 600,652 |
| Events in quadrant B | 3,308,385 | 617,127 |
| Events in quadrant C | 3,154,989 | 609,391 |
| Events in quadrant D | 4,094,910 | 565,117 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13533 | 3 |
| B | 0 | 13919 | 2 |
| C | 0 | 13551 | 2 |
| D | 0 | 16384 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6557 | 38 | 0.579533% |
| B | 6557 | 59 | 0.899802% |
| C | 6557 | 10 | 0.152509% |
| D | 6557 | 114 | 1.738600% |

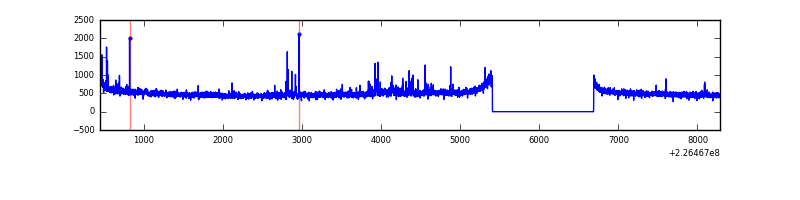

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7837 | 6558 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7837 | 6557 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7837 | 6558 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7837 | 6557 | 120 | 120 | 1.53% | 1.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7693 | 41.14 | 819 | 804 | 167.5 |
| A | 12 | 194 | 7377 | 39.25 | 819 | 804 | 167.5 |
| A | 2 | 79 | 4570 | 22.49 | 819 | 804 | 167.5 |
| B | 4 | 173 | 36319 | 226.23 | 830 | 811 | 157.0 |
| B | 12 | 111 | 15093 | 90.99 | 830 | 811 | 157.0 |
| B | 4 | 239 | 13869 | 83.19 | 830 | 811 | 157.0 |
| C | 13 | 61 | 6386 | 29.75 | 807 | 812 | 187.4 |
| C | 14 | 67 | 4363 | 18.95 | 807 | 812 | 187.4 |
| C | 12 | 4 | 3256 | 13.04 | 807 | 812 | 187.4 |
| D | 12 | 221 | 526285 | 2699.35 | 795 | 773 | 194.7 |
| D | 1 | 52 | 415353 | 2129.53 | 795 | 773 | 194.7 |
| D | 2 | 152 | 86993 | 442.88 | 795 | 773 | 194.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

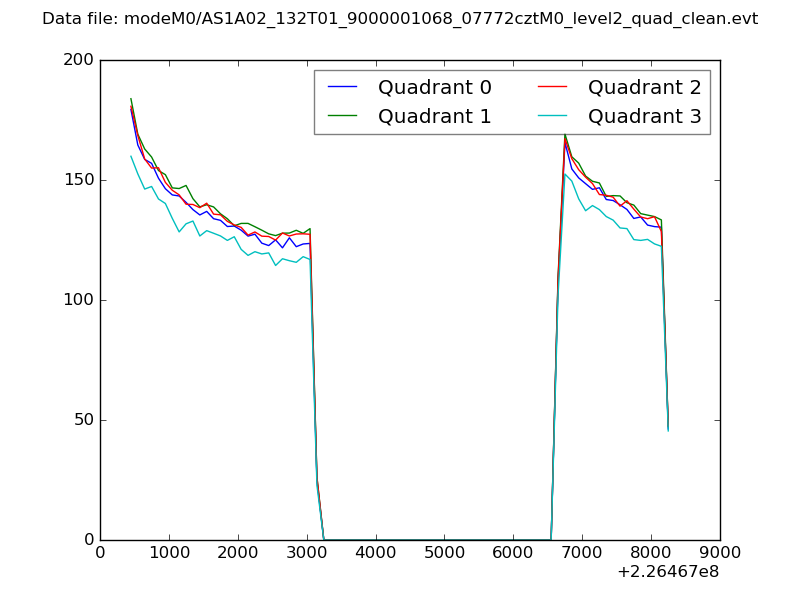

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

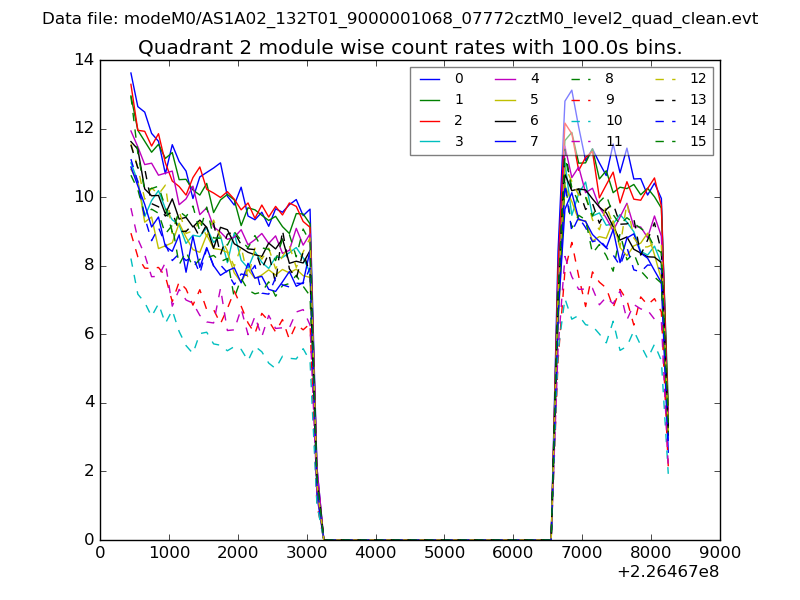

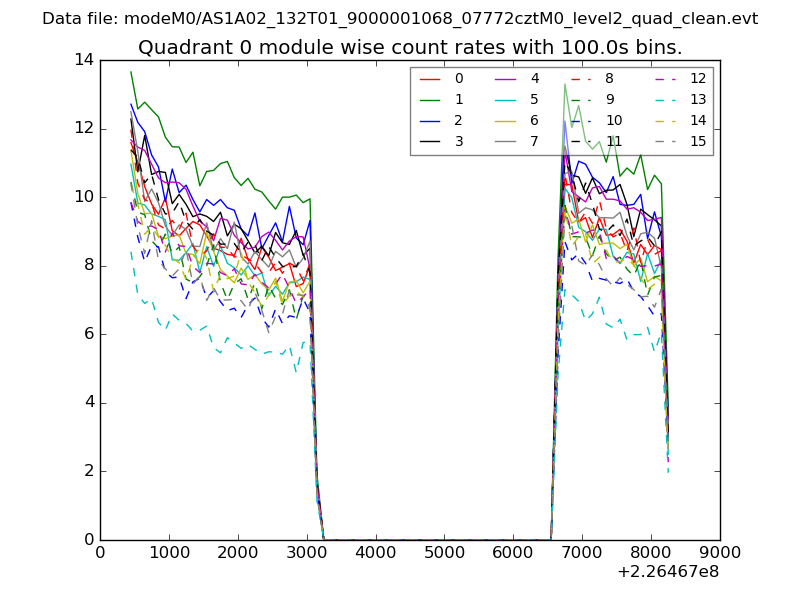

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

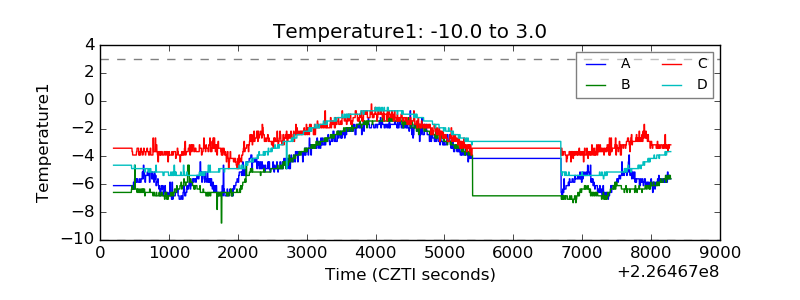

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

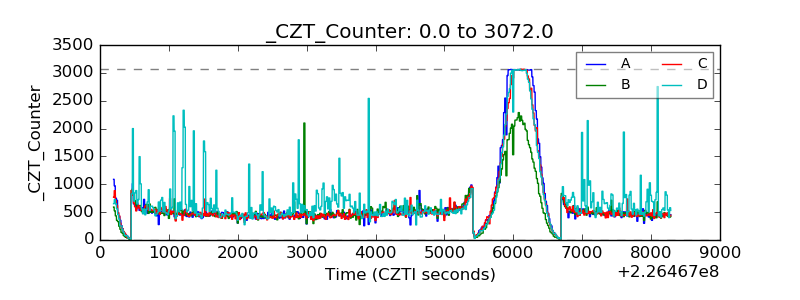

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

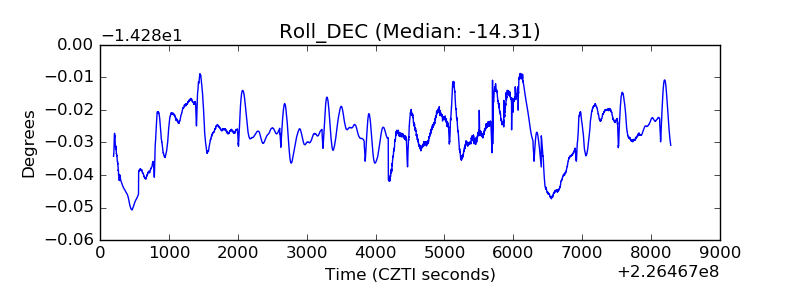

| _Roll_DEC |  |
| _Roll_RA |  |

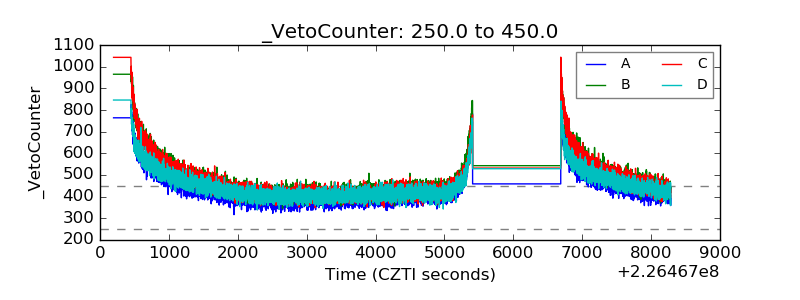

| Veto Counter |  |
