| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_120T01_9000001266_09099cztM0_level2.evt | modeM0/AS1A03_120T01_9000001266_09099cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,954,560 | 89,798,400 |
| Size | 411.0 MB | 85.6 MB |
| Events in quadrant A | 3,137,654 | 569,953 |
| Events in quadrant B | 3,012,537 | 579,861 |
| Events in quadrant C | 2,906,383 | 569,028 |
| Events in quadrant D | 3,546,123 | 540,409 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13656 | 12 |
| B | 0 | 13467 | 18 |
| C | 0 | 13353 | 9 |
| D | 0 | 15183 | 13 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6597 | 18 | 0.272851% |
| B | 6593 | 16 | 0.242682% |
| C | 6598 | 10 | 0.151561% |
| D | 6596 | 162 | 2.456034% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7641 | 6601 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7641 | 6602 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7641 | 6602 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7641 | 6602 | 145 | 145 | 1.90% | 2.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 161641 | 1037.23 | 757 | 740 | 155.1 |
| A | 4 | 2 | 19315 | 119.74 | 757 | 740 | 155.1 |
| A | 5 | 16 | 14088 | 86.05 | 757 | 740 | 155.1 |
| B | 12 | 111 | 15997 | 103.87 | 765 | 745 | 146.8 |
| B | 4 | 48 | 15790 | 102.46 | 765 | 745 | 146.8 |
| B | 0 | 219 | 13744 | 88.53 | 765 | 745 | 146.8 |
| C | 13 | 61 | 5492 | 27.4 | 744 | 746 | 173.2 |
| C | 12 | 4 | 5428 | 27.03 | 744 | 746 | 173.2 |
| C | 3 | 202 | 1818 | 6.19 | 744 | 746 | 173.2 |
| D | 2 | 14 | 389557 | 2028.74 | 726 | 707 | 191.7 |
| D | 1 | 52 | 100543 | 520.87 | 726 | 707 | 191.7 |
| D | 13 | 104 | 94266 | 488.12 | 726 | 707 | 191.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

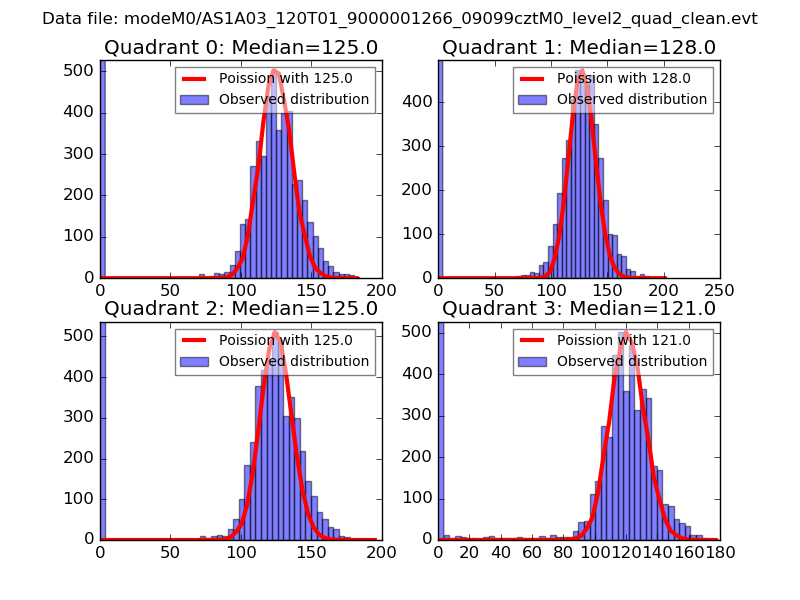

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

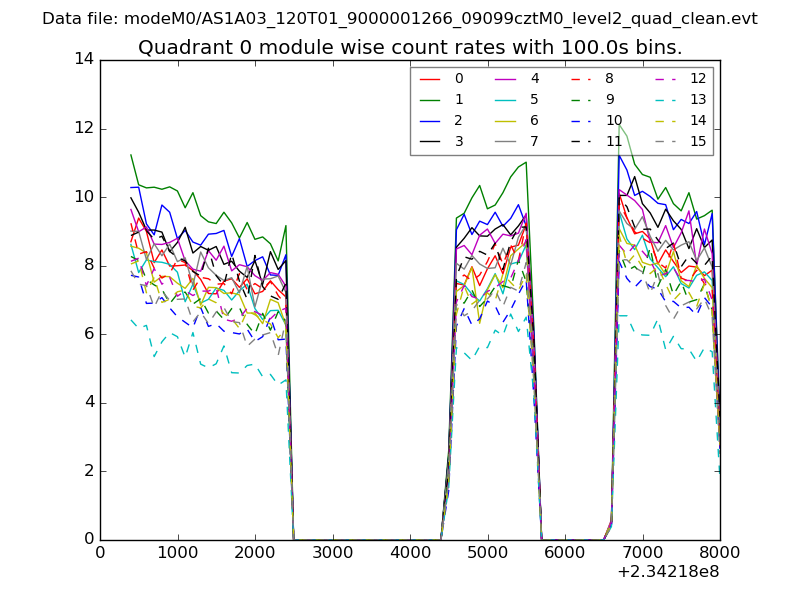

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

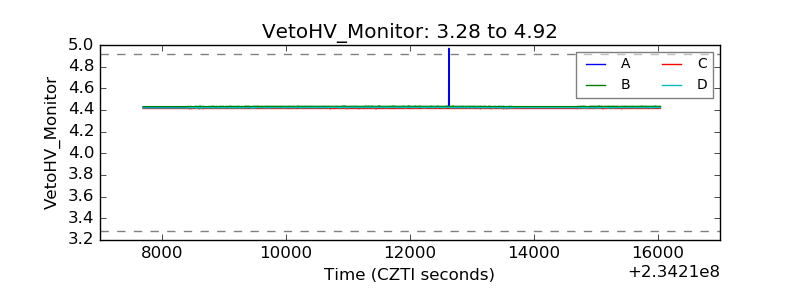

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

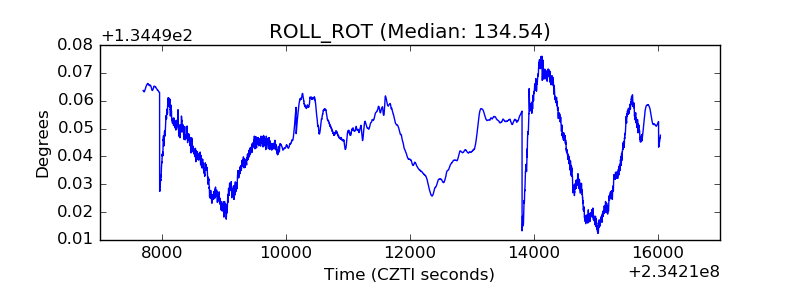

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
