| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_020T01_9000001398_09831cztM0_level2.evt | modeM0/AS1G07_020T01_9000001398_09831cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,636,800 | 86,607,360 |
| Size | 528.0 MB | 82.6 MB |
| Events in quadrant A | 3,692,326 | 525,697 |
| Events in quadrant B | 3,854,970 | 530,754 |
| Events in quadrant C | 3,671,849 | 529,840 |
| Events in quadrant D | 5,020,180 | 495,533 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16312 | 3 |
| B | 0 | 16506 | 4 |
| C | 0 | 16387 | 5 |
| D | 0 | 20438 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7770 | 224 | 2.882883% |
| B | 7769 | 268 | 3.449607% |
| C | 7769 | 221 | 2.844639% |
| D | 7769 | 453 | 5.830866% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9005 | 7772 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9005 | 7772 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9005 | 7772 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9005 | 7772 | 178 | 178 | 1.98% | 2.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8920 | 40.82 | 956 | 932 | 195.7 |
| A | 12 | 194 | 7810 | 35.15 | 956 | 932 | 195.7 |
| A | 13 | 253 | 6648 | 29.21 | 956 | 932 | 195.7 |
| B | 0 | 214 | 44439 | 232.59 | 960 | 933 | 187.1 |
| B | 4 | 173 | 26358 | 135.93 | 960 | 933 | 187.1 |
| B | 4 | 239 | 25959 | 133.79 | 960 | 933 | 187.1 |
| C | 13 | 61 | 6990 | 27.16 | 940 | 942 | 222.6 |
| C | 8 | 128 | 4792 | 17.29 | 940 | 942 | 222.6 |
| C | 8 | 112 | 2550 | 7.22 | 940 | 942 | 222.6 |
| D | 1 | 52 | 1057633 | 4757.26 | 912 | 892 | 222.1 |
| D | 7 | 46 | 309346 | 1388.6 | 912 | 892 | 222.1 |
| D | 7 | 71 | 105528 | 471.05 | 912 | 892 | 222.1 |

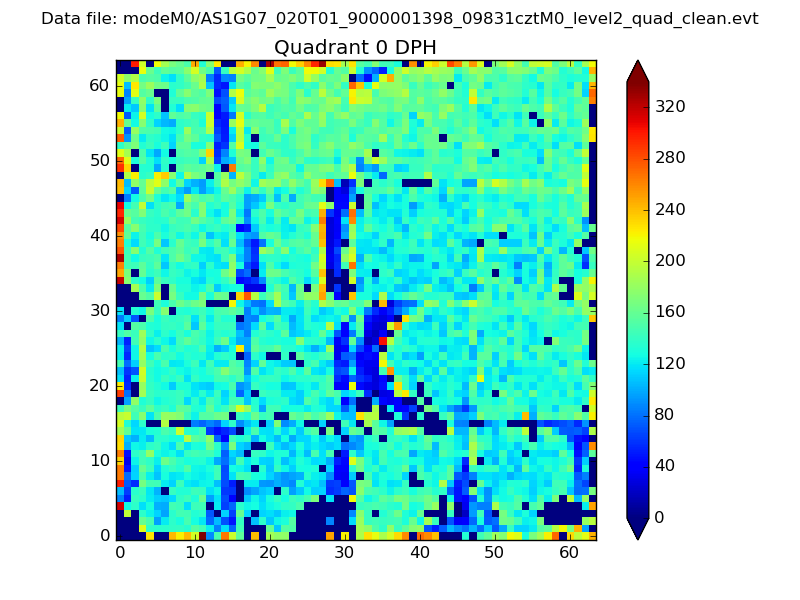

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

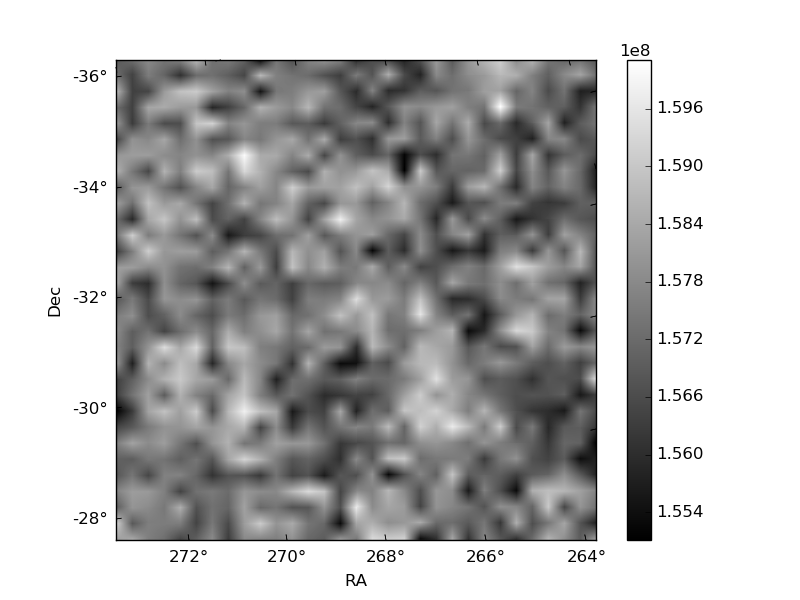

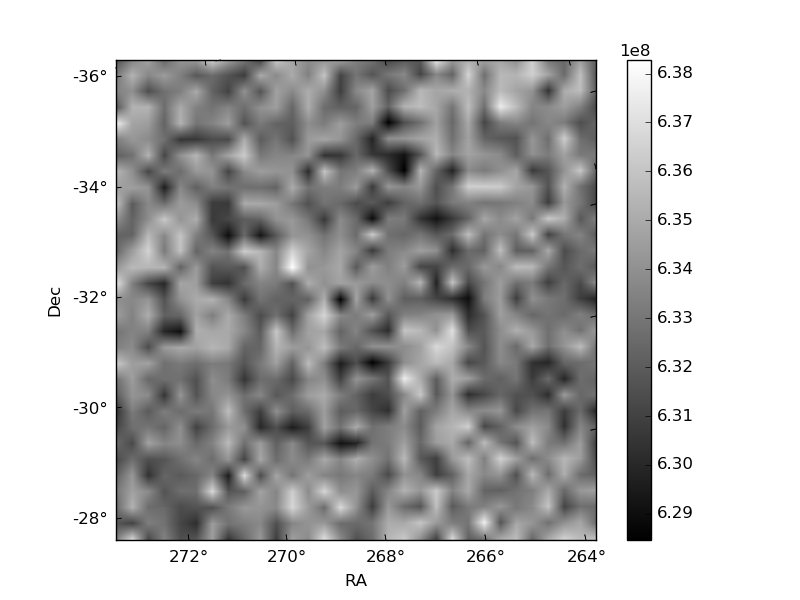

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

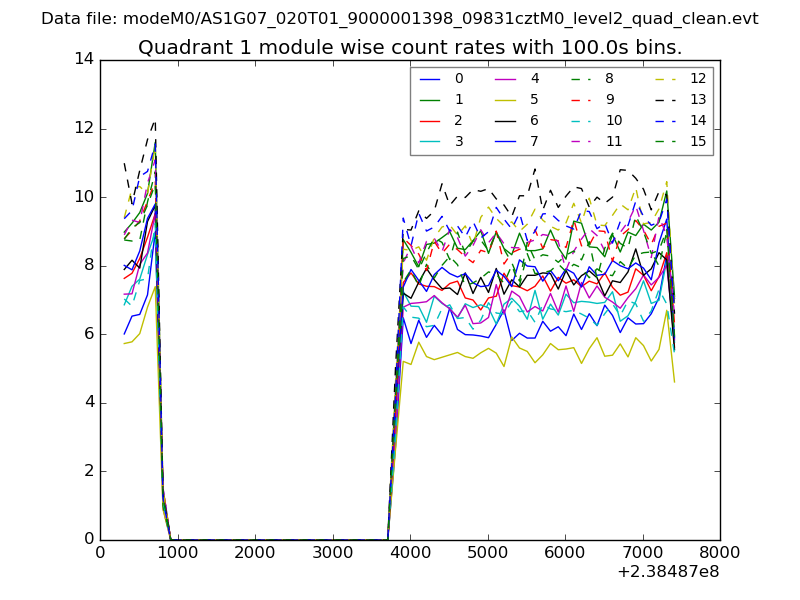

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

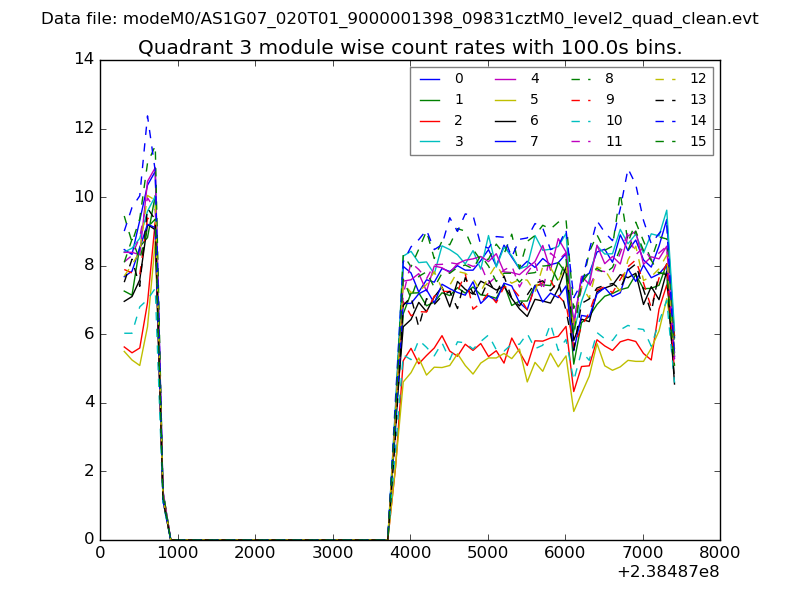

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

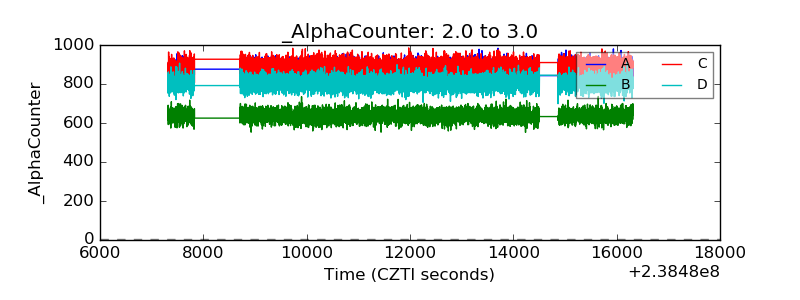

| Alpha Counter |  |

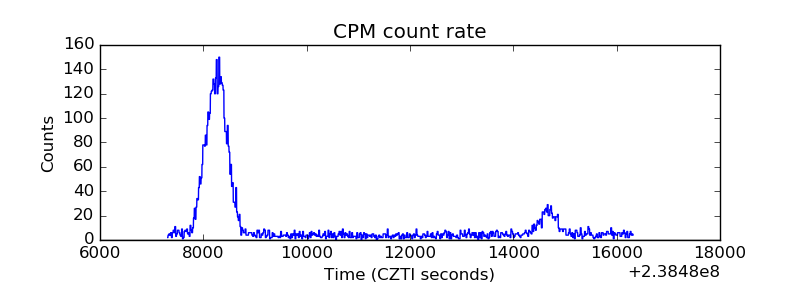

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

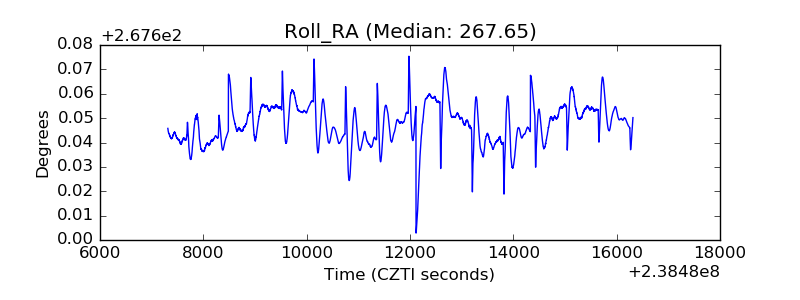

| _Roll_RA |  |
| Veto Counter |  |
