| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_124T01_9000001486_10304cztM0_level2.evt | modeM0/AS1A03_124T01_9000001486_10304cztM0_level2_quad_clean.evt |
| Size (bytes) | 122,745,600 | 25,358,400 |
| Size | 117.1 MB | 24.2 MB |
| Events in quadrant A | 829,860 | 155,429 |
| Events in quadrant B | 894,228 | 160,696 |
| Events in quadrant C | 827,977 | 158,775 |
| Events in quadrant D | 1,037,392 | 158,373 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7701 | 4151 |
| B | 0 | 8752 | 5015 |
| C | 0 | 7992 | 4323 |
| D | 0 | 8451 | 4210 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 83 | 50 |
| B | 0 | 81 | 44 |
| C | 0 | 82 | 45 |
| D | 0 | 79 | 37 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1770 | 1 | 0.056497% |
| B | 1779 | 3 | 0.168634% |
| C | 1832 | 1 | 0.054585% |
| D | 1975 | 1 | 0.050633% |

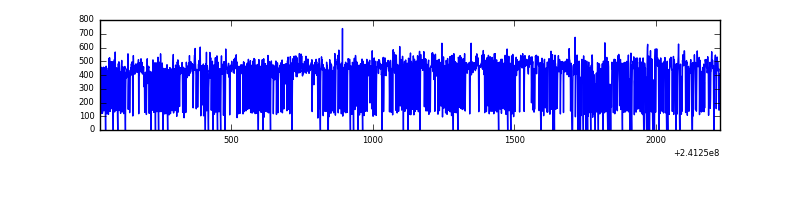

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2188 | 2106 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2187 | 2084 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2188 | 2122 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2188 | 2134 | 1 | 1 | 0.05% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 5113 | 108.72 | 214 | 210 | 45.1 |
| A | 0 | 226 | 2055 | 40.91 | 214 | 210 | 45.1 |
| A | 12 | 194 | 1797 | 35.19 | 214 | 210 | 45.1 |
| B | 4 | 239 | 43529 | 1044.55 | 211 | 206 | 41.5 |
| B | 0 | 189 | 12145 | 287.86 | 211 | 206 | 41.5 |
| B | 0 | 214 | 10462 | 247.28 | 211 | 206 | 41.5 |
| C | 14 | 234 | 1553 | 26.88 | 211 | 212 | 49.9 |
| C | 13 | 61 | 1537 | 26.56 | 211 | 212 | 49.9 |
| C | 14 | 67 | 1310 | 22.01 | 211 | 212 | 49.9 |
| D | 8 | 195 | 87003 | 1564.96 | 228 | 221 | 55.5 |
| D | 2 | 16 | 37406 | 670.57 | 228 | 221 | 55.5 |
| D | 2 | 33 | 10588 | 186.95 | 228 | 221 | 55.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

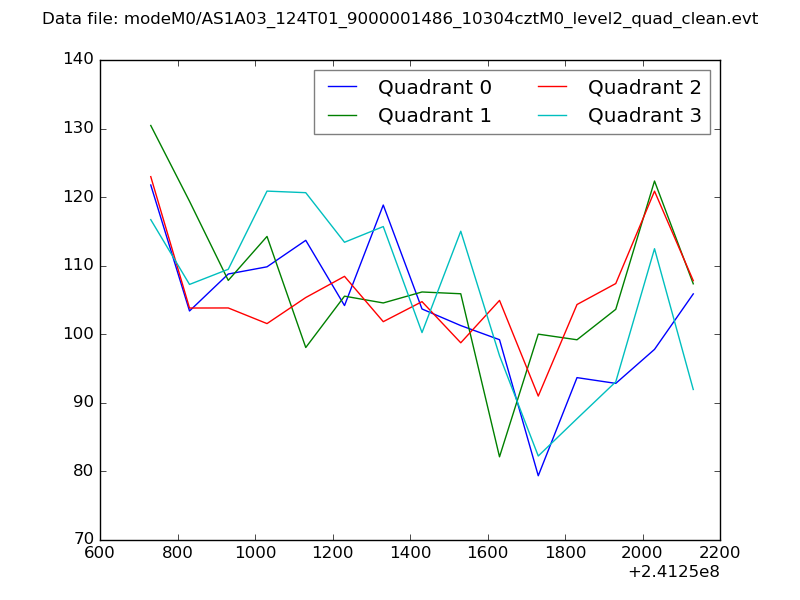

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

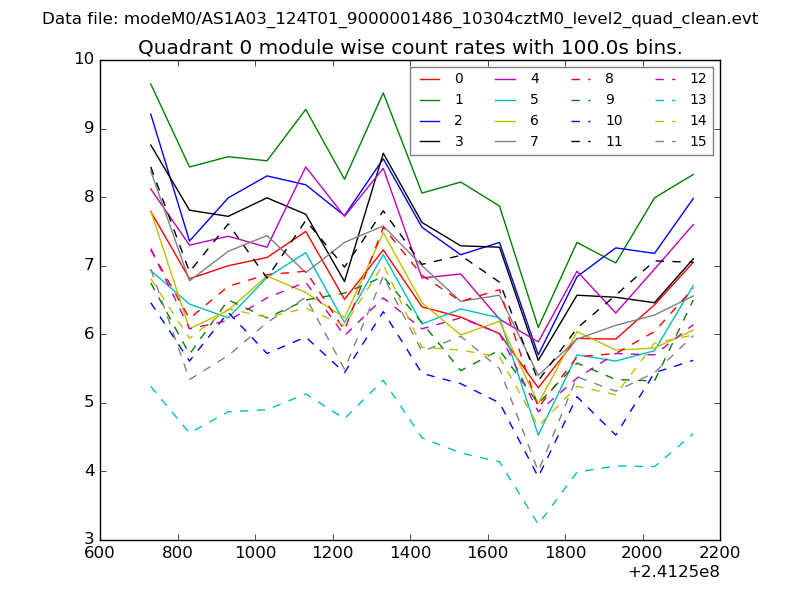

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

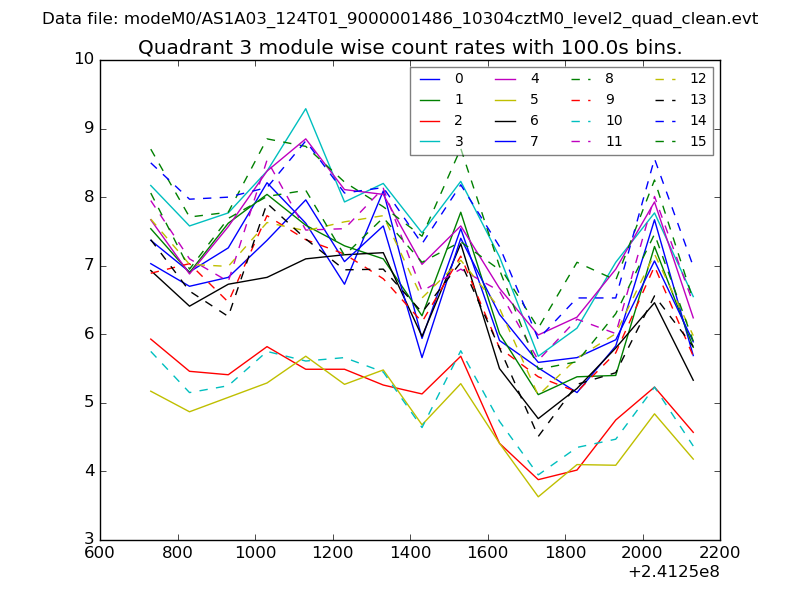

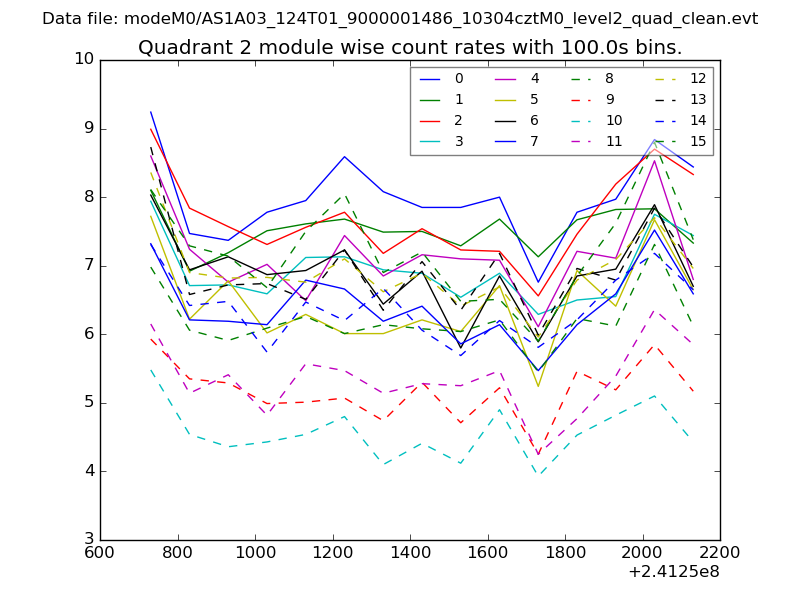

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

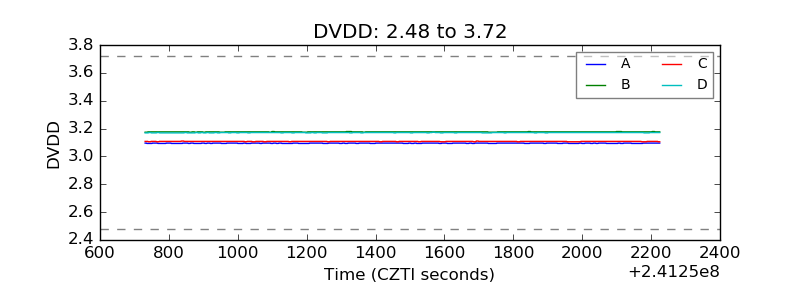

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

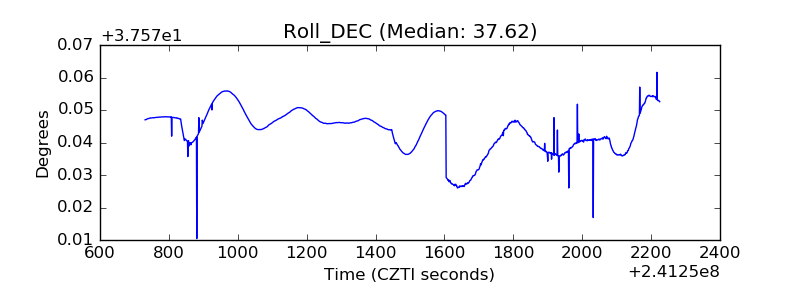

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
