| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_094T01_9000003204_21608cztM0_level2.evt | modeM0/AS1A05_094T01_9000003204_21608cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,140,800 | 99,538,560 |
| Size | 451.2 MB | 94.9 MB |
| Events in quadrant A | 3,116,880 | 648,112 |
| Events in quadrant B | 3,268,353 | 661,571 |
| Events in quadrant C | 3,195,353 | 644,708 |
| Events in quadrant D | 4,317,520 | 617,148 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13475 | 2 |
| B | 0 | 13895 | 2 |
| C | 0 | 13726 | 2 |
| D | 0 | 17133 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6345 | 19 | 0.299448% |
| B | 6345 | 43 | 0.677699% |
| C | 6345 | 71 | 1.118991% |
| D | 6345 | 217 | 3.420016% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7560 | 6346 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7560 | 6346 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7560 | 6346 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7560 | 6346 | 158 | 158 | 2.09% | 2.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8760 | 49.28 | 805 | 790 | 161.7 |
| A | 0 | 226 | 6997 | 38.38 | 805 | 790 | 161.7 |
| A | 3 | 137 | 6644 | 36.19 | 805 | 790 | 161.7 |
| B | 3 | 64 | 30134 | 191.24 | 814 | 796 | 153.4 |
| B | 12 | 111 | 18048 | 112.46 | 814 | 796 | 153.4 |
| B | 0 | 190 | 16626 | 103.19 | 814 | 796 | 153.4 |
| C | 14 | 238 | 125361 | 672.77 | 787 | 792 | 185.2 |
| C | 13 | 61 | 5453 | 25.17 | 787 | 792 | 185.2 |
| C | 9 | 54 | 2522 | 9.34 | 787 | 792 | 185.2 |
| D | 1 | 52 | 551948 | 2939.91 | 774 | 752 | 187.5 |
| D | 7 | 223 | 426088 | 2268.61 | 774 | 752 | 187.5 |
| D | 2 | 136 | 154294 | 818.95 | 774 | 752 | 187.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

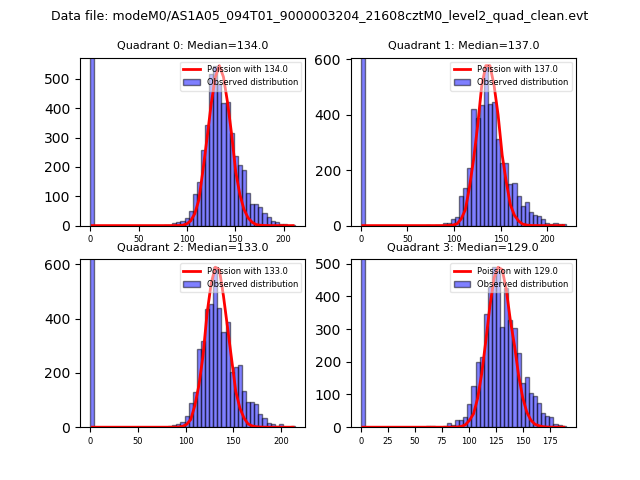

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

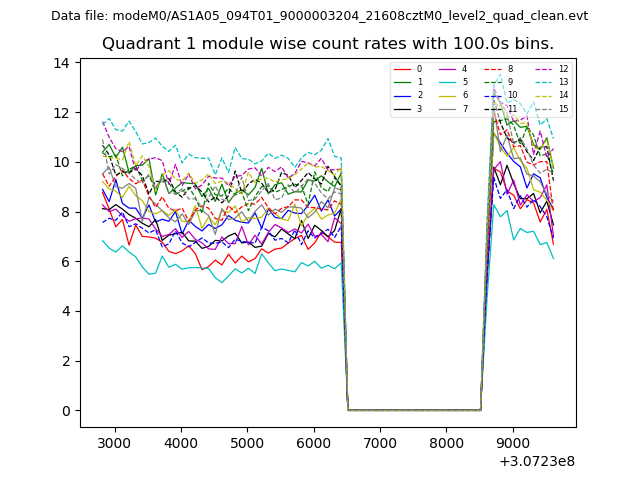

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

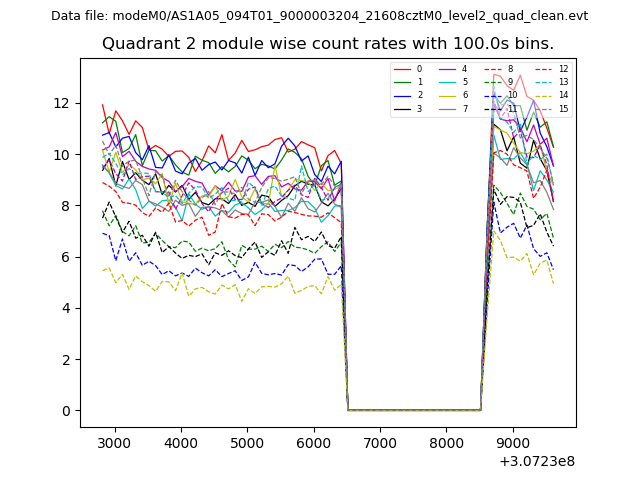

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

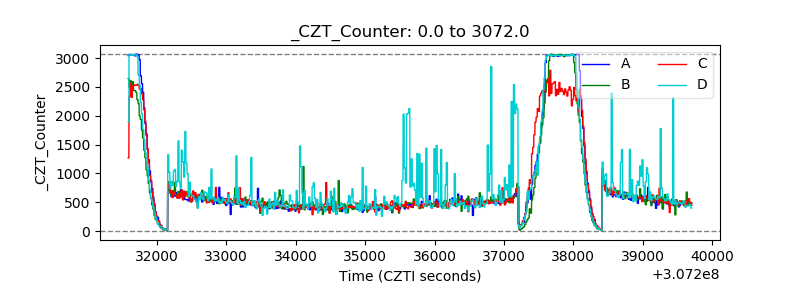

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

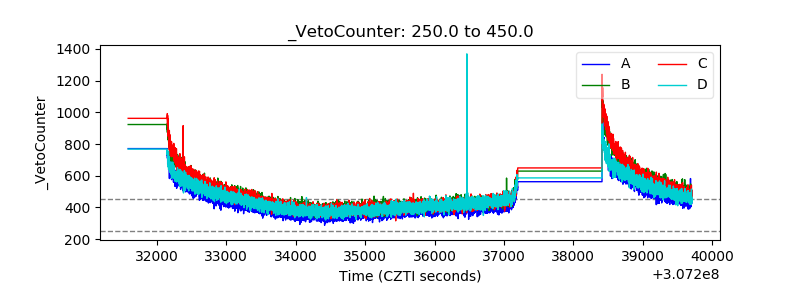

| Veto Counter |  |
