| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_054T01_9000003370_22811cztM0_level2.evt | modeM0/AS1A07_054T01_9000003370_22811cztM0_level2_quad_clean.evt |
| Size (bytes) | 427,651,200 | 135,109,440 |
| Size | 407.8 MB | 128.9 MB |
| Events in quadrant A | 3,173,261 | 950,689 |
| Events in quadrant B | 3,207,876 | 947,323 |
| Events in quadrant C | 3,035,432 | 879,138 |
| Events in quadrant D | 3,115,762 | 884,908 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12994 | 1 |
| B | 0 | 13198 | 1 |
| C | 0 | 12719 | 1 |
| D | 0 | 13095 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6164 | 49 | 0.794938% |
| B | 6164 | 71 | 1.151849% |
| C | 6164 | 75 | 1.216742% |
| D | 6164 | 38 | 0.616483% |

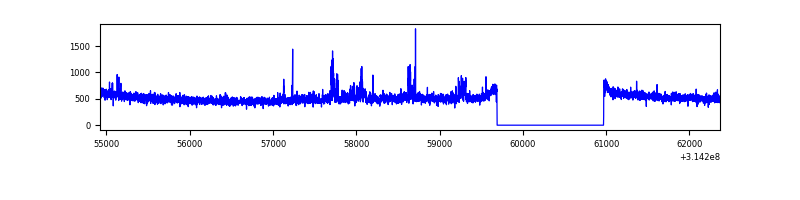

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7444 | 6165 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7444 | 6165 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7444 | 6165 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7444 | 6165 | 10 | 10 | 0.13% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 62305 | 384.19 | 807 | 793 | 160.1 |
| A | 13 | 254 | 11312 | 65.7 | 807 | 793 | 160.1 |
| A | 0 | 226 | 7033 | 38.97 | 807 | 793 | 160.1 |
| B | 0 | 190 | 43806 | 290.5 | 791 | 774 | 148.1 |
| B | 0 | 230 | 26615 | 174.45 | 791 | 774 | 148.1 |
| B | 0 | 229 | 25724 | 168.43 | 791 | 774 | 148.1 |
| C | 14 | 238 | 122223 | 712.51 | 746 | 753 | 170.5 |
| C | 13 | 61 | 5369 | 27.08 | 746 | 753 | 170.5 |
| C | 2 | 16 | 2958 | 12.93 | 746 | 753 | 170.5 |
| D | 1 | 52 | 74059 | 400.49 | 771 | 749 | 183.1 |
| D | 1 | 239 | 41824 | 224.39 | 771 | 749 | 183.1 |
| D | 7 | 238 | 37781 | 202.3 | 771 | 749 | 183.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

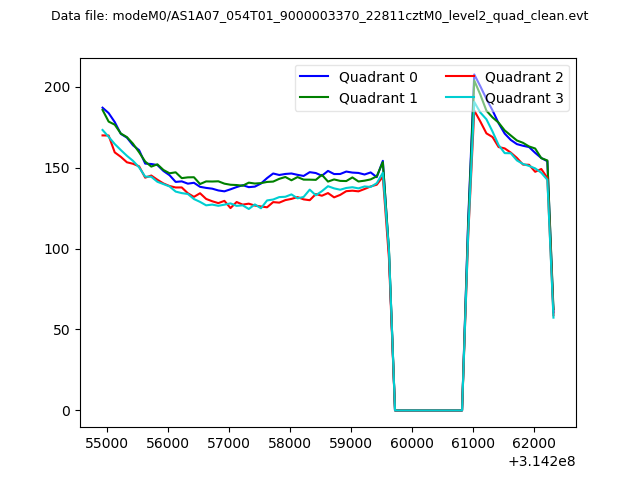

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

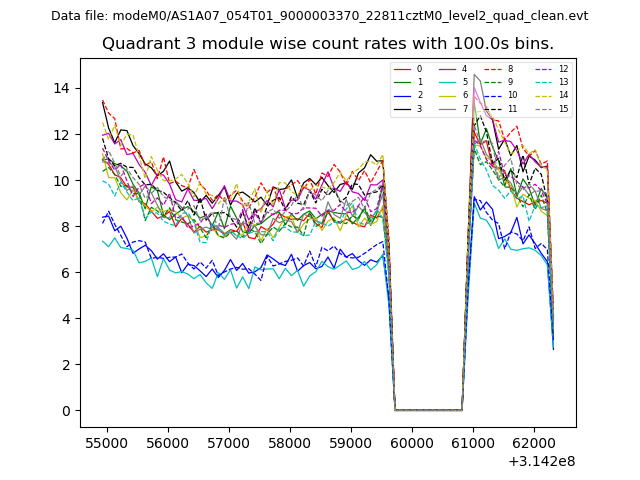

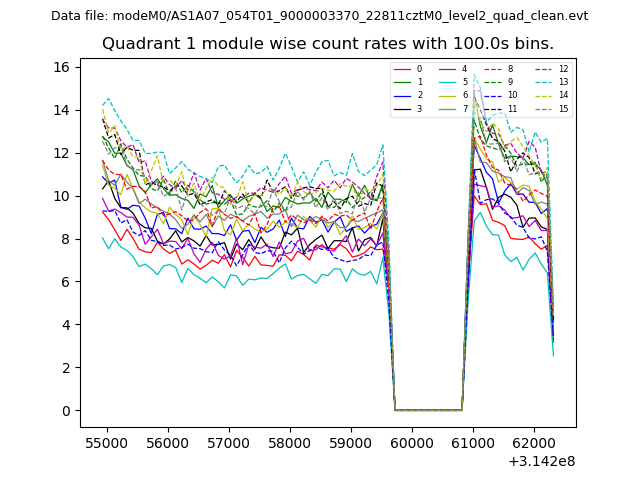

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

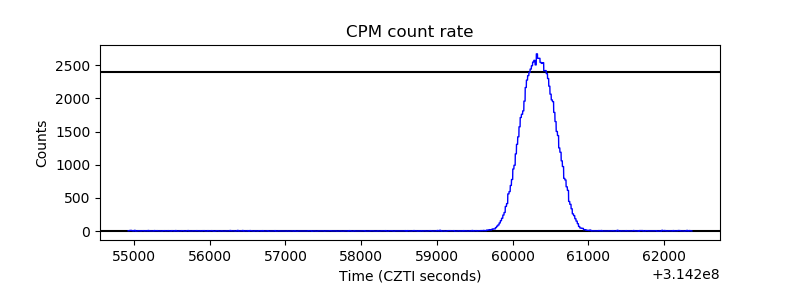

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

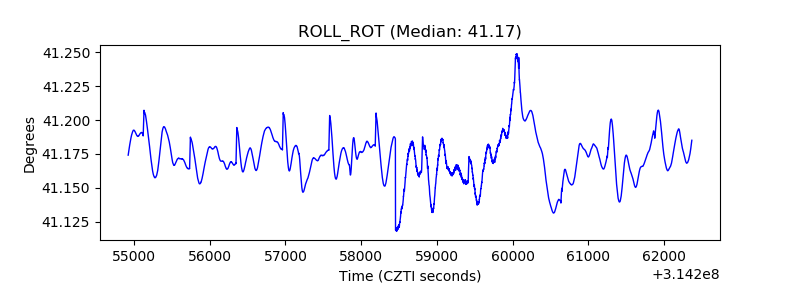

| _ROLL_ROT |  |

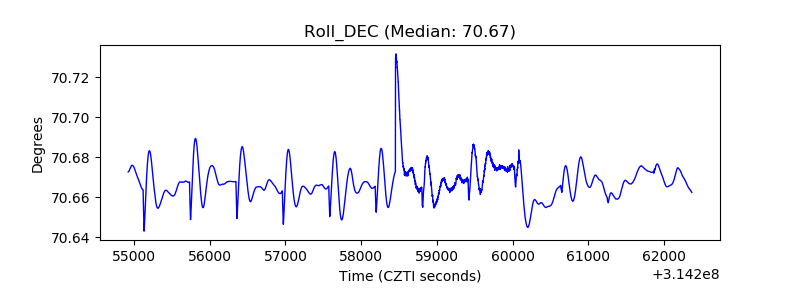

| _Roll_DEC |  |
| _Roll_RA |  |

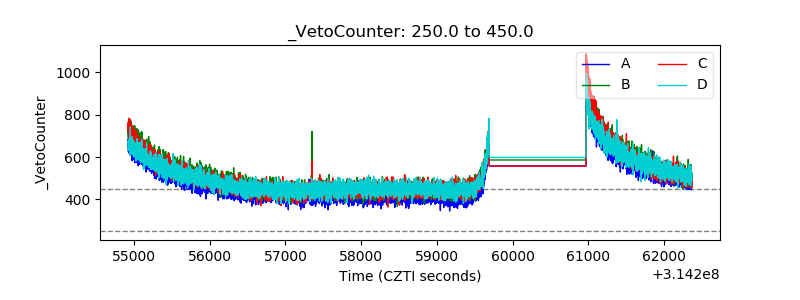

| Veto Counter |  |
