| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_001T01_9000003374_22836cztM0_level2.evt | modeM0/AS1C05_001T01_9000003374_22836cztM0_level2_quad_clean.evt |
| Size (bytes) | 313,629,120 | 93,211,200 |
| Size | 299.1 MB | 88.9 MB |
| Events in quadrant A | 2,249,723 | 632,935 |
| Events in quadrant B | 2,321,517 | 644,867 |
| Events in quadrant C | 2,261,381 | 607,099 |
| Events in quadrant D | 2,330,090 | 593,040 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 115 | 15 |
| B | 0 | 114 | 14 |
| C | 0 | 119 | 19 |
| D | 0 | 116 | 16 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10046 | 0 |
| B | 0 | 10223 | 0 |
| C | 0 | 10016 | 0 |
| D | 0 | 10413 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 5 |
| B | 0 | 14 | 8 |
| C | 0 | 11 | 5 |
| D | 0 | 12 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4977 | 5 | 0.100462% |
| B | 4971 | 9 | 0.181050% |
| C | 4979 | 17 | 0.341434% |
| D | 4972 | 13 | 0.261464% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7804 | 5015 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7804 | 5010 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7804 | 5013 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7804 | 5012 | 8 | 8 | 0.10% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 47 | 35454 | 298.55 | 574 | 562 | 116.9 |
| A | 13 | 254 | 8595 | 68.73 | 574 | 562 | 116.9 |
| A | 3 | 137 | 4868 | 36.84 | 574 | 562 | 116.9 |
| B | 0 | 190 | 55216 | 494.48 | 575 | 559 | 110.5 |
| B | 12 | 111 | 13272 | 115.01 | 575 | 559 | 110.5 |
| B | 0 | 230 | 12080 | 104.23 | 575 | 559 | 110.5 |
| C | 14 | 238 | 89086 | 677.83 | 556 | 558 | 130.6 |
| C | 13 | 61 | 3872 | 25.37 | 556 | 558 | 130.6 |
| C | 0 | 239 | 3557 | 22.96 | 556 | 558 | 130.6 |
| D | 1 | 52 | 122768 | 911.53 | 557 | 542 | 134.1 |
| D | 12 | 227 | 28443 | 208.08 | 557 | 542 | 134.1 |
| D | 2 | 152 | 22020 | 160.18 | 557 | 542 | 134.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

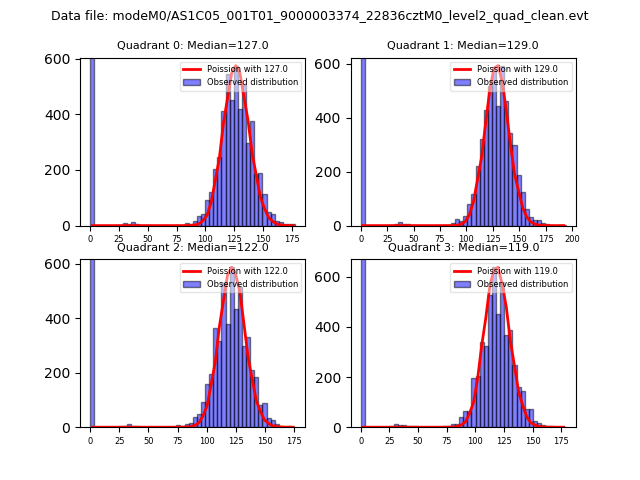

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

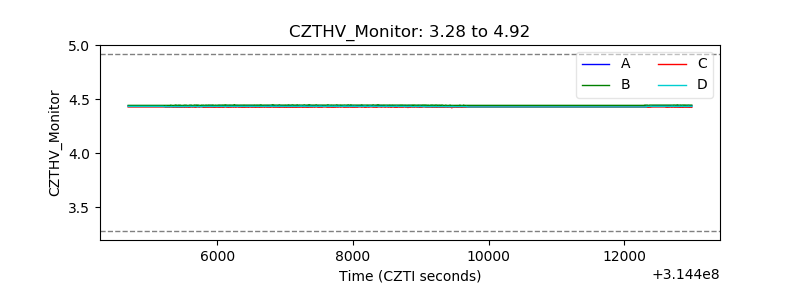

| CZT HV Monitor |  |

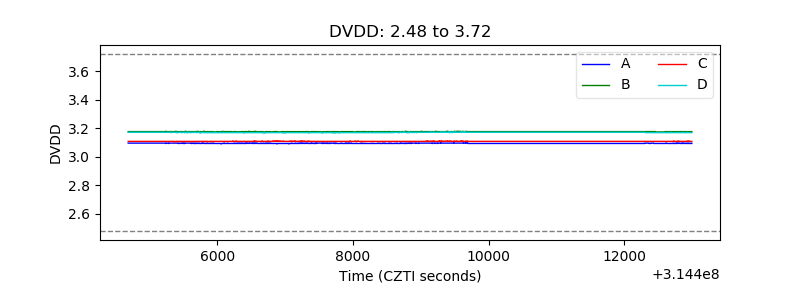

| D_VDD |  |

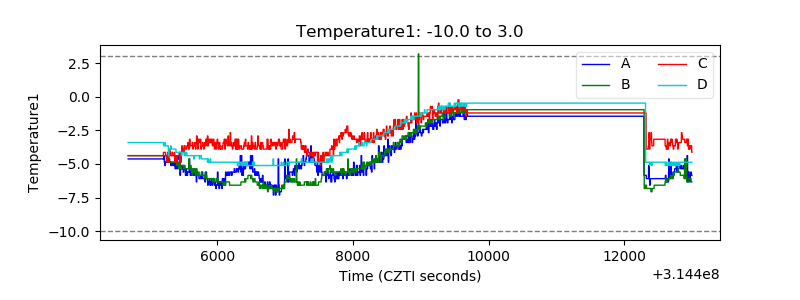

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

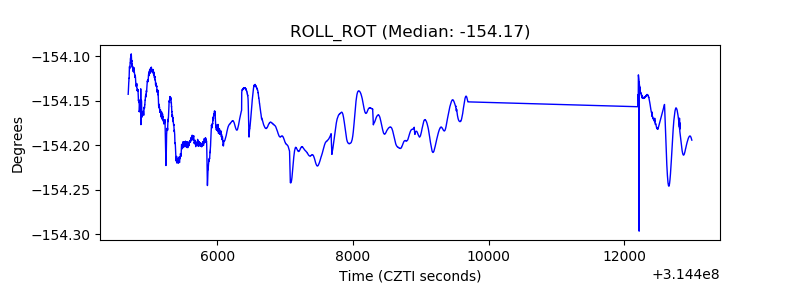

| _ROLL_ROT |  |

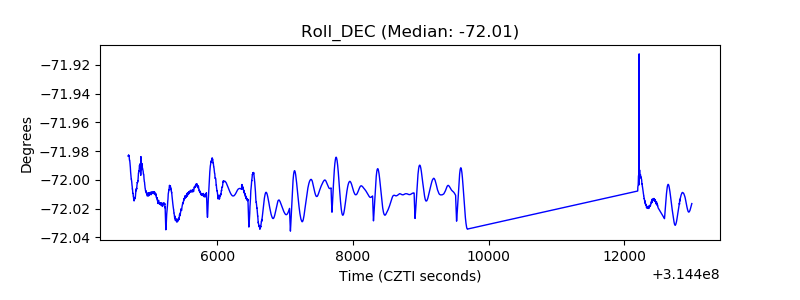

| _Roll_DEC |  |
| _Roll_RA |  |

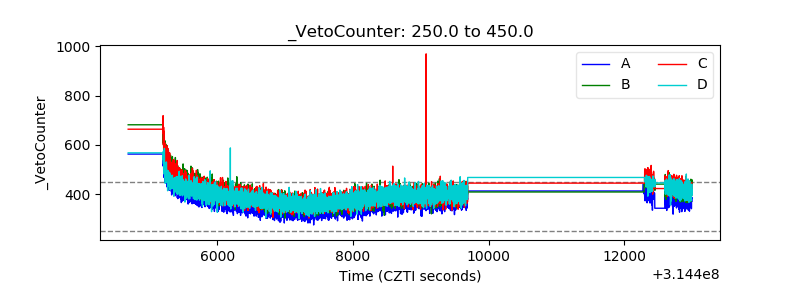

| Veto Counter |  |
