| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_003T03_9000003632_24834cztM0_level2.evt | modeM0/AS1A08_003T03_9000003632_24834cztM0_level2_quad_clean.evt |
| Size (bytes) | 331,732,800 | 59,541,120 |
| Size | 316.4 MB | 56.8 MB |
| Events in quadrant A | 2,340,632 | 373,843 |
| Events in quadrant B | 2,449,885 | 382,823 |
| Events in quadrant C | 2,403,520 | 357,310 |
| Events in quadrant D | 2,518,415 | 344,872 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10060 | 1 |
| B | 0 | 10349 | 1 |
| C | 0 | 10228 | 1 |
| D | 0 | 10892 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4900 | 20 | 0.408163% |
| B | 4900 | 36 | 0.734694% |
| C | 4900 | 54 | 1.102041% |
| D | 4900 | 114 | 2.326531% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5980 | 4901 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5980 | 4901 | 4 | 4 | 0.07% | 0.08% |  |
| C | 5980 | 4901 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5980 | 4901 | 66 | 66 | 1.10% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7347 | 54.62 | 607 | 593 | 123.7 |
| A | 3 | 137 | 5758 | 41.77 | 607 | 593 | 123.7 |
| A | 0 | 226 | 5072 | 36.22 | 607 | 593 | 123.7 |
| B | 10 | 251 | 57256 | 485.17 | 604 | 588 | 116.8 |
| B | 7 | 202 | 16743 | 138.31 | 604 | 588 | 116.8 |
| B | 12 | 111 | 14391 | 118.18 | 604 | 588 | 116.8 |
| C | 14 | 238 | 92689 | 672.92 | 578 | 583 | 136.9 |
| C | 5 | 112 | 37078 | 266.63 | 578 | 583 | 136.9 |
| C | 7 | 247 | 19147 | 135.63 | 578 | 583 | 136.9 |
| D | 12 | 218 | 301648 | 2139.82 | 575 | 559 | 140.7 |
| D | 2 | 234 | 21278 | 147.25 | 575 | 559 | 140.7 |
| D | 8 | 195 | 18671 | 128.72 | 575 | 559 | 140.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

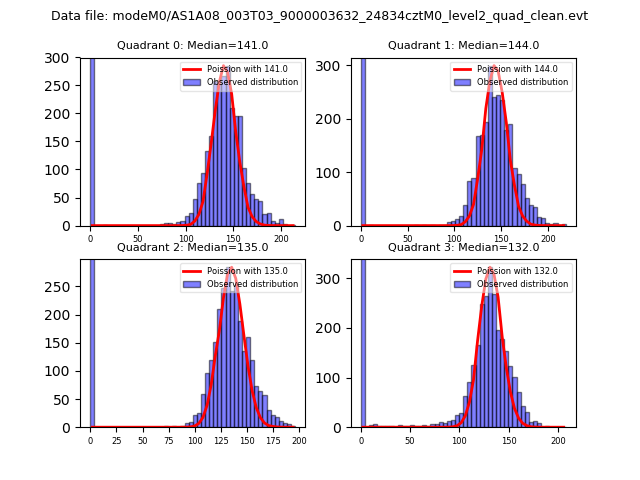

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

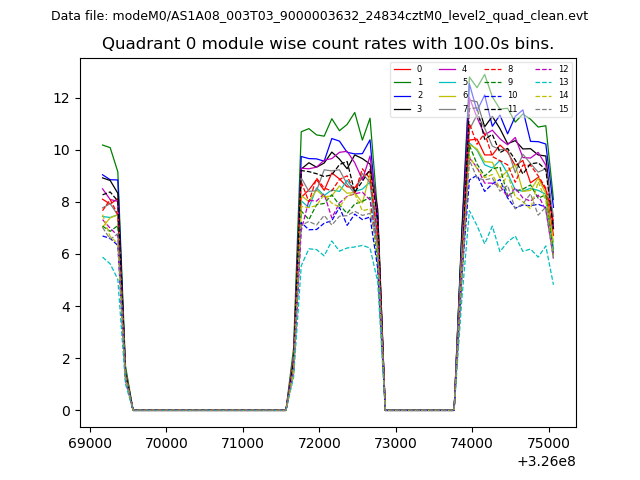

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

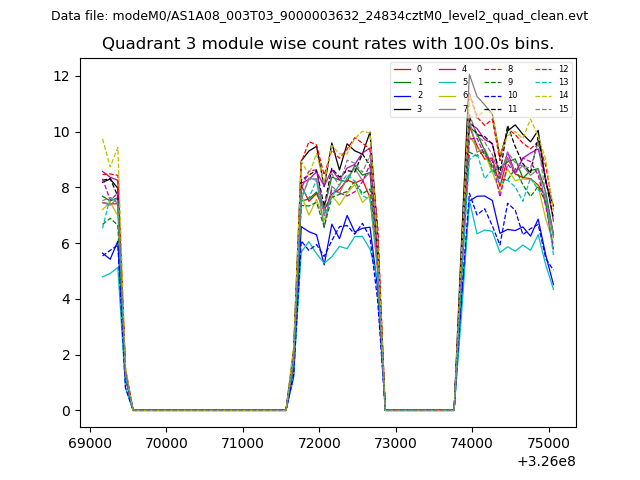

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

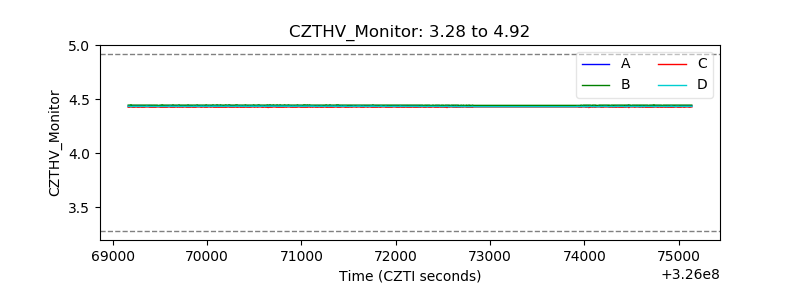

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

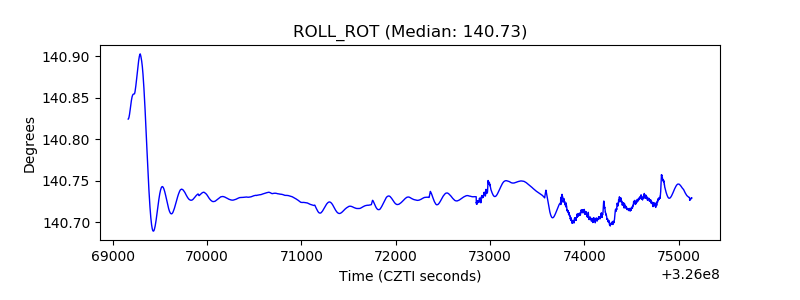

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
