| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_021T04_9000004116_28687cztM0_level2.evt | modeM0/AS1A10_021T04_9000004116_28687cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,365,120 | 81,976,320 |
| Size | 439.0 MB | 78.2 MB |
| Events in quadrant A | 2,875,942 | 530,721 |
| Events in quadrant B | 2,923,979 | 541,968 |
| Events in quadrant C | 3,747,285 | 512,290 |
| Events in quadrant D | 4,008,114 | 498,846 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11892 | 1 |
| B | 0 | 12041 | 1 |
| C | 0 | 15243 | 1 |
| D | 0 | 15675 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5700 | 45 | 0.789474% |
| B | 5701 | 72 | 1.262936% |
| C | 5701 | 134 | 2.350465% |
| D | 5700 | 174 | 3.052632% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6900 | 5700 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6901 | 5701 | 1 | 1 | 0.01% | 0.02% |  |
| C | 6901 | 5701 | 3 | 3 | 0.04% | 0.05% |  |
| D | 6900 | 5700 | 131 | 131 | 1.90% | 2.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8691 | 53.63 | 745 | 731 | 148.4 |
| A | 3 | 137 | 6846 | 41.2 | 745 | 731 | 148.4 |
| A | 0 | 226 | 6222 | 37.0 | 745 | 731 | 148.4 |
| B | 10 | 245 | 28652 | 199.58 | 733 | 716 | 140.0 |
| B | 12 | 111 | 16611 | 113.56 | 733 | 716 | 140.0 |
| B | 11 | 111 | 15430 | 105.12 | 733 | 716 | 140.0 |
| C | 3 | 233 | 826830 | 5014.69 | 708 | 714 | 164.7 |
| C | 14 | 238 | 126312 | 762.4 | 708 | 714 | 164.7 |
| C | 2 | 16 | 20847 | 122.21 | 708 | 714 | 164.7 |
| D | 1 | 52 | 740944 | 4393.4 | 713 | 695 | 168.5 |
| D | 8 | 195 | 248080 | 1468.24 | 713 | 695 | 168.5 |
| D | 7 | 80 | 146467 | 865.16 | 713 | 695 | 168.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

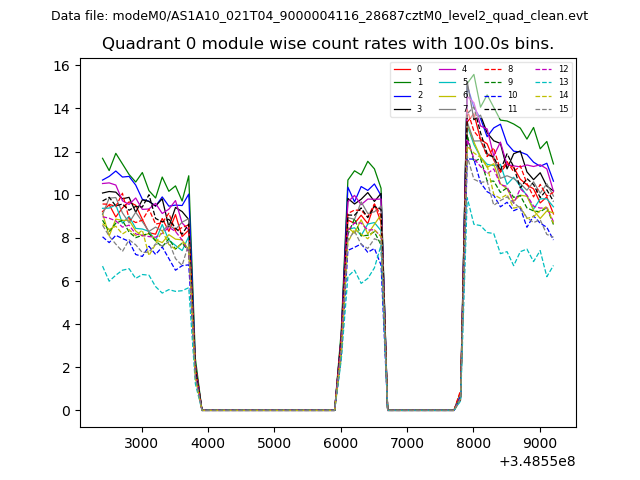

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

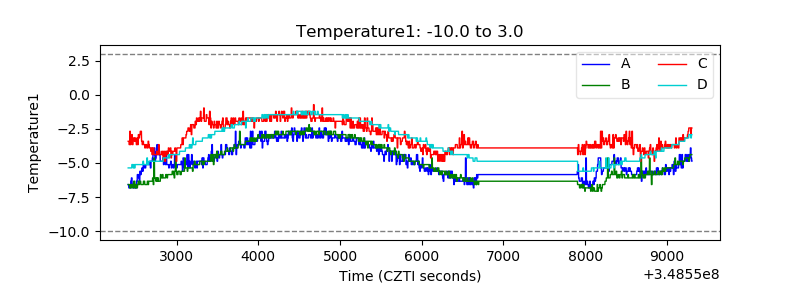

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

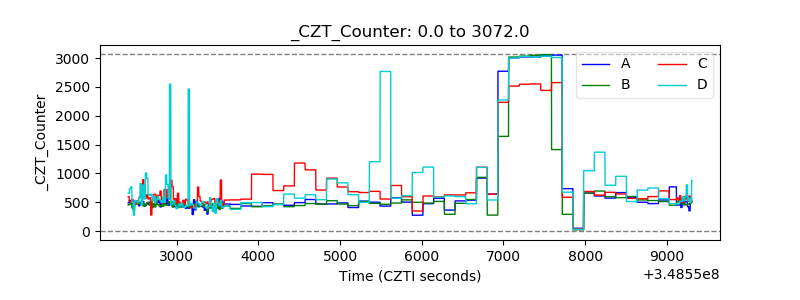

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

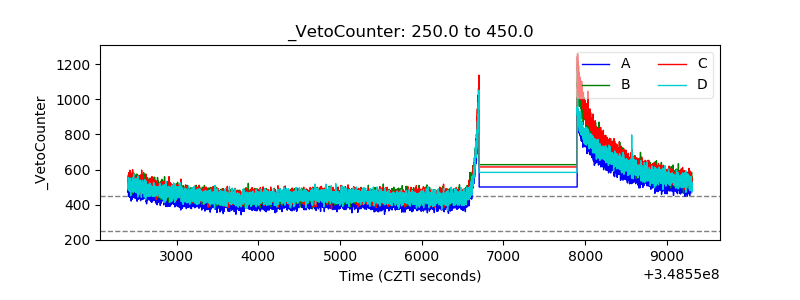

| Veto Counter |  |
