| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_073T07_9000004254_29529cztM0_level2.evt | modeM0/AS1A10_073T07_9000004254_29529cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,350,720 | 69,094,080 |
| Size | 559.2 MB | 65.9 MB |
| Events in quadrant A | 2,627,458 | 454,505 |
| Events in quadrant B | 2,579,870 | 478,445 |
| Events in quadrant C | 2,588,855 | 463,598 |
| Events in quadrant D | 9,634,509 | 355,887 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 2 |
| B | 0 | 100 | 0 |
| C | 0 | 101 | 1 |
| D | 0 | 102 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11086 | 366 |
| B | 0 | 10727 | 210 |
| C | 0 | 10669 | 201 |
| D | 0 | 32712 | 807 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4824 | 58 | 1.202322% |
| B | 4837 | 70 | 1.447178% |
| C | 4836 | 56 | 1.157982% |
| D | 4816 | 2278 | 47.300664% |

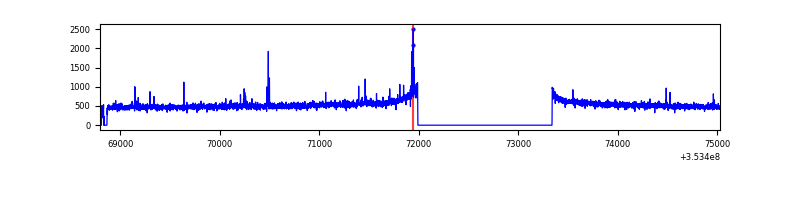

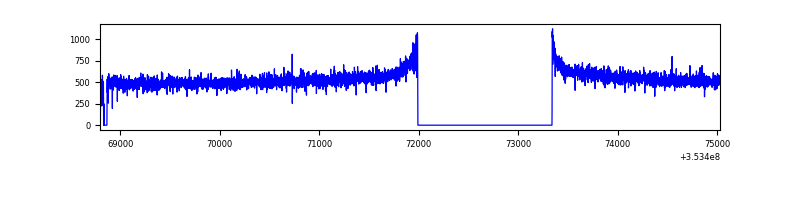

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6228 | 4833 | 16 | 16 | 0.26% | 0.33% |  |
| B | 6230 | 4846 | 2 | 2 | 0.03% | 0.04% |  |
| C | 6225 | 4844 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6223 | 4831 | 2402 | 2402 | 38.60% | 49.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 159460 | 1236.39 | 639 | 627 | 128.5 |
| A | 13 | 254 | 8828 | 63.84 | 639 | 627 | 128.5 |
| A | 3 | 137 | 5784 | 40.14 | 639 | 627 | 128.5 |
| B | 5 | 255 | 41178 | 333.2 | 642 | 627 | 121.7 |
| B | 12 | 111 | 14247 | 111.91 | 642 | 627 | 121.7 |
| B | 11 | 111 | 12805 | 100.06 | 642 | 627 | 121.7 |
| C | 14 | 238 | 103578 | 700.05 | 630 | 636 | 147.0 |
| C | 3 | 233 | 19633 | 129.19 | 630 | 636 | 147.0 |
| C | 2 | 114 | 11791 | 75.86 | 630 | 636 | 147.0 |
| D | 8 | 195 | 5443425 | 42752.39 | 542 | 530 | 127.3 |
| D | 7 | 238 | 1558712 | 12239.08 | 542 | 530 | 127.3 |
| D | 7 | 223 | 281407 | 2206.21 | 542 | 530 | 127.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

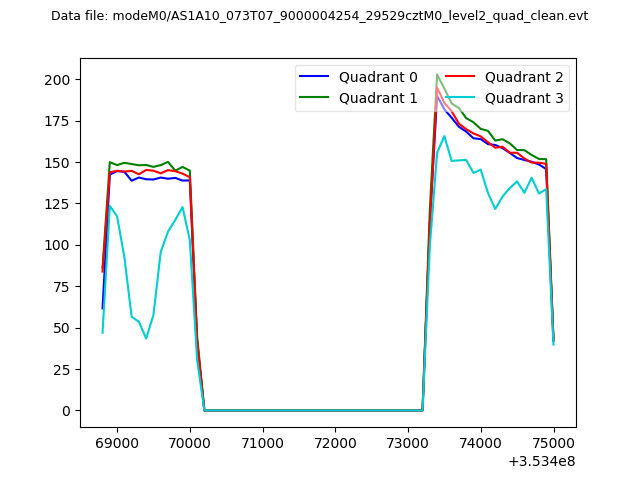

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

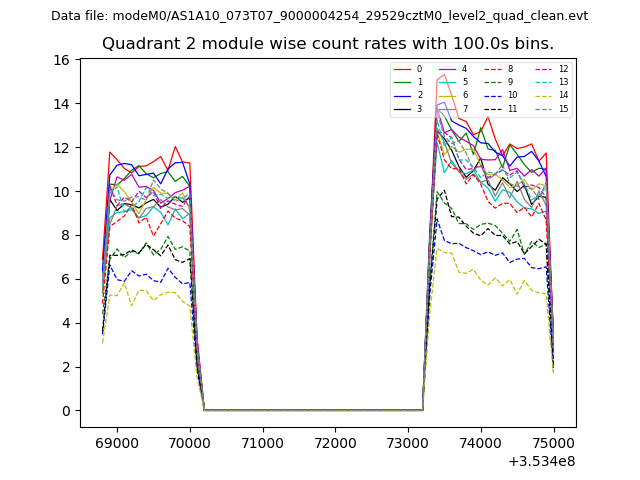

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

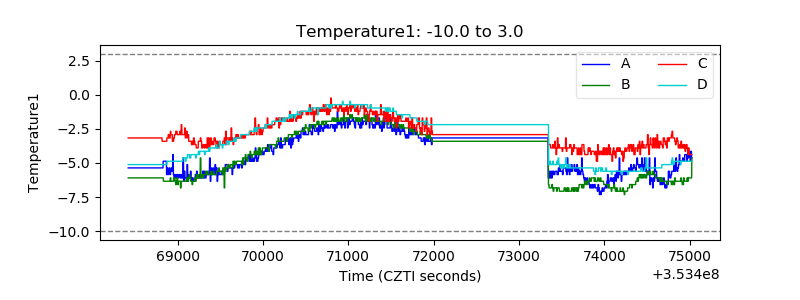

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

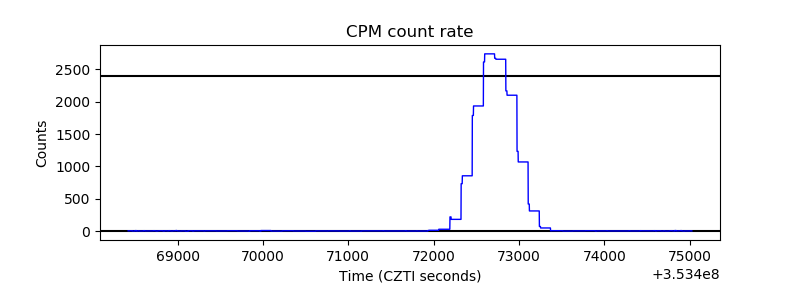

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

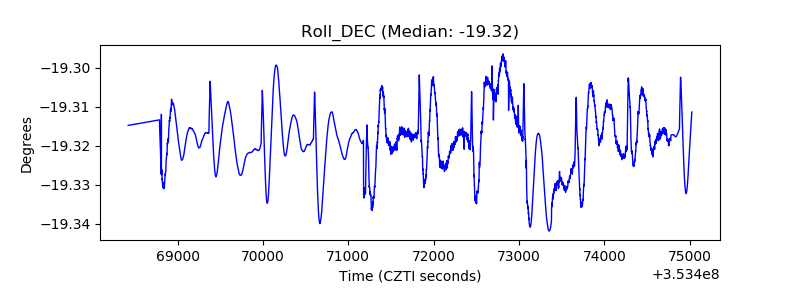

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

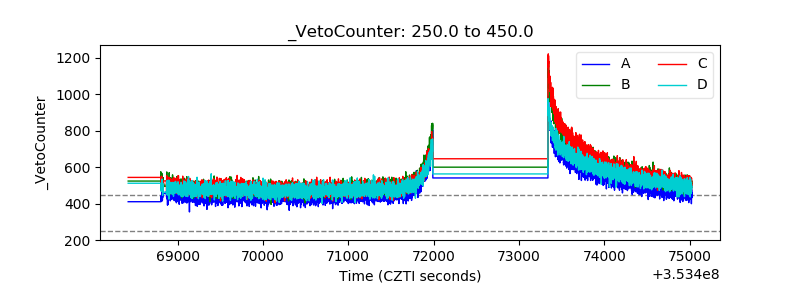

| Veto Counter |  |
