| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_291T01_9000004278_29817cztM0_level2.evt | modeM0/AS1T03_291T01_9000004278_29817cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,813,440 | 65,462,400 |
| Size | 531.0 MB | 62.4 MB |
| Events in quadrant A | 3,388,769 | 404,792 |
| Events in quadrant B | 5,183,205 | 398,055 |
| Events in quadrant C | 3,371,424 | 375,052 |
| Events in quadrant D | 4,502,875 | 373,837 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14023 | 1 |
| B | 0 | 19305 | 1 |
| C | 0 | 13908 | 1 |
| D | 0 | 17409 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6151 | 98 | 1.593237% |
| B | 6151 | 144 | 2.341083% |
| C | 6151 | 160 | 2.601203% |
| D | 6152 | 285 | 4.632640% |

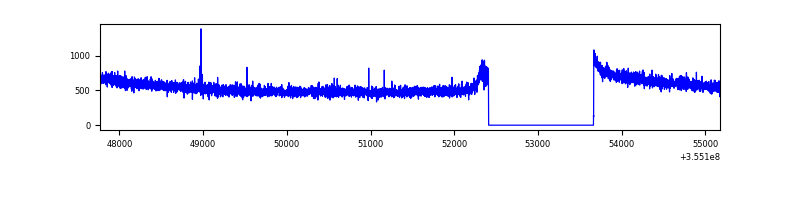

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7406 | 6152 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7406 | 6152 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7406 | 6152 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7407 | 6153 | 180 | 180 | 2.43% | 2.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12235 | 66.59 | 878 | 864 | 170.8 |
| A | 3 | 137 | 7621 | 39.57 | 878 | 864 | 170.8 |
| A | 0 | 226 | 7380 | 38.16 | 878 | 864 | 170.8 |
| B | 6 | 159 | 1764767 | 11227.79 | 859 | 842 | 157.1 |
| B | 12 | 111 | 18360 | 111.51 | 859 | 842 | 157.1 |
| B | 3 | 209 | 16866 | 102.0 | 859 | 842 | 157.1 |
| C | 14 | 238 | 146735 | 789.23 | 813 | 818 | 184.9 |
| C | 3 | 233 | 24361 | 127.34 | 813 | 818 | 184.9 |
| C | 14 | 254 | 17084 | 87.98 | 813 | 818 | 184.9 |
| D | 7 | 80 | 728017 | 3744.15 | 825 | 805 | 194.2 |
| D | 8 | 195 | 424781 | 2182.9 | 825 | 805 | 194.2 |
| D | 2 | 250 | 95282 | 486.43 | 825 | 805 | 194.2 |

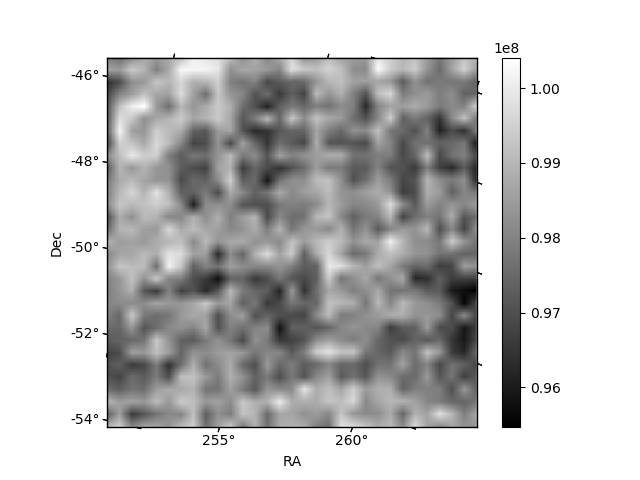

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

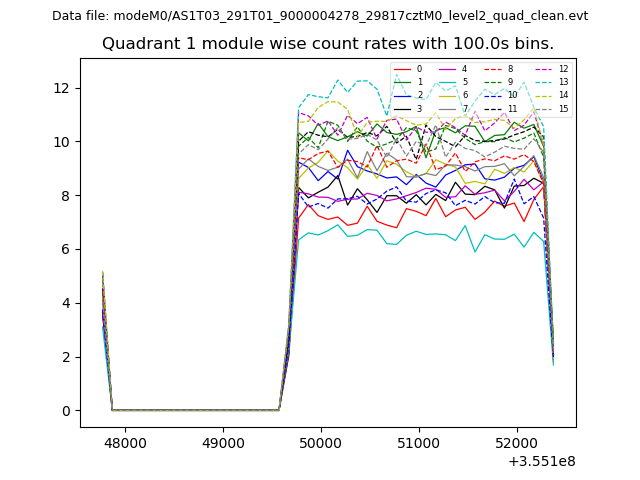

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

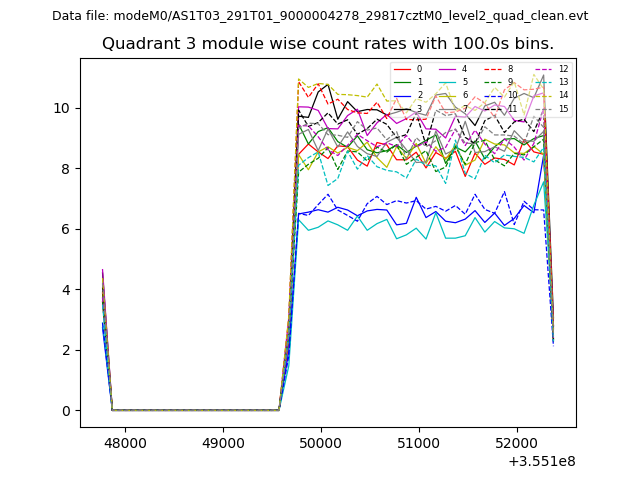

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

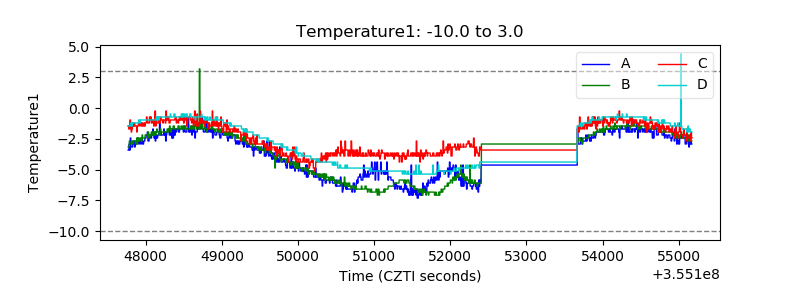

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

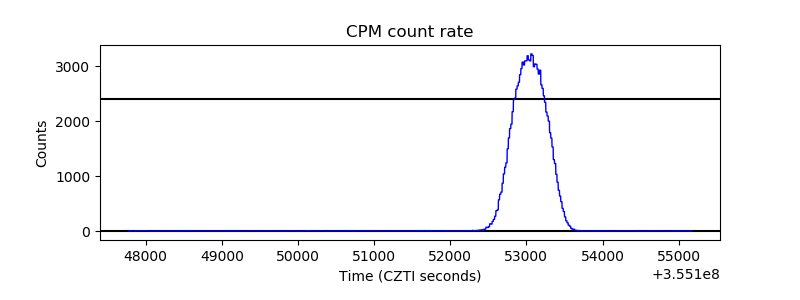

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

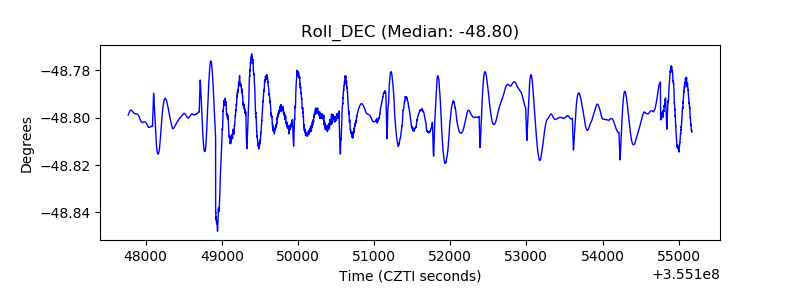

| _Roll_DEC |  |
| _Roll_RA |  |

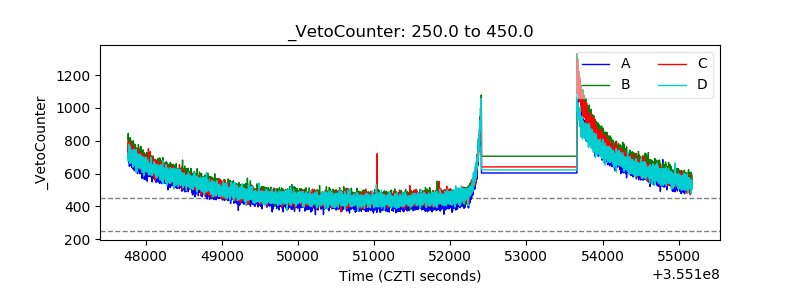

| Veto Counter |  |
