| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_071T12_9000004446_30764cztM0_level2.evt | modeM0/AS1A10_071T12_9000004446_30764cztM0_level2_quad_clean.evt |
| Size (bytes) | 214,954,560 | 33,822,720 |
| Size | 205.0 MB | 32.3 MB |
| Events in quadrant A | 1,293,303 | 225,754 |
| Events in quadrant B | 1,715,014 | 227,379 |
| Events in quadrant C | 1,213,272 | 218,268 |
| Events in quadrant D | 2,146,846 | 203,539 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5126 | 1 |
| B | 0 | 6635 | 3 |
| C | 0 | 4831 | 1 |
| D | 0 | 7778 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2054 | 226 | 11.002921% |
| B | 2053 | 317 | 15.440818% |
| C | 2053 | 261 | 12.713103% |
| D | 2053 | 406 | 19.775938% |

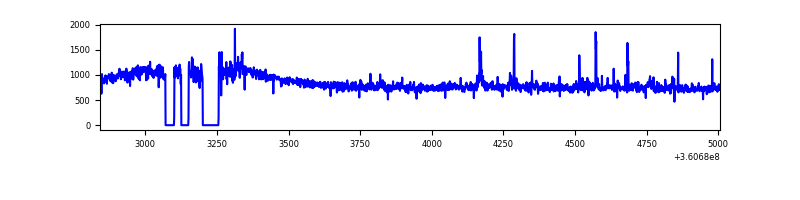

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2164 | 2054 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2163 | 2053 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2163 | 2053 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2162 | 2052 | 176 | 176 | 8.14% | 8.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 108936 | 1657.19 | 306 | 297 | 65.6 |
| A | 13 | 254 | 3660 | 51.3 | 306 | 297 | 65.6 |
| A | 3 | 137 | 3391 | 47.2 | 306 | 297 | 65.6 |
| B | 6 | 159 | 522544 | 8629.83 | 290 | 282 | 60.5 |
| B | 0 | 190 | 12913 | 208.71 | 290 | 282 | 60.5 |
| B | 5 | 172 | 10550 | 169.67 | 290 | 282 | 60.5 |
| C | 14 | 238 | 44699 | 624.65 | 287 | 288 | 71.1 |
| C | 3 | 233 | 20098 | 278.63 | 287 | 288 | 71.1 |
| C | 0 | 10 | 11062 | 151.54 | 287 | 288 | 71.1 |
| D | 8 | 195 | 759556 | 10350.56 | 293 | 285 | 73.4 |
| D | 12 | 218 | 122240 | 1662.52 | 293 | 285 | 73.4 |
| D | 13 | 249 | 60933 | 826.77 | 293 | 285 | 73.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

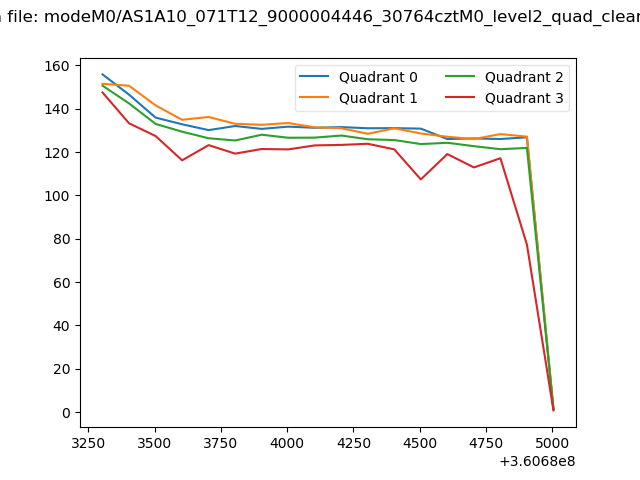

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

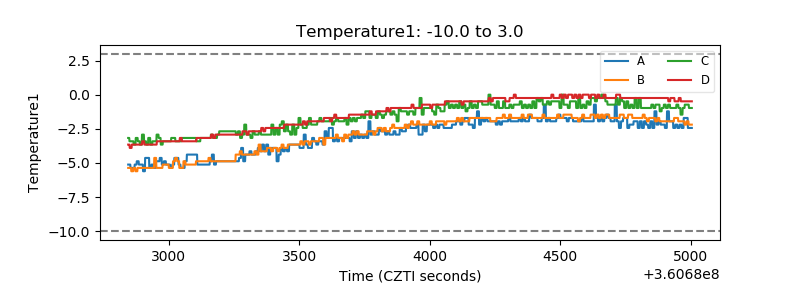

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

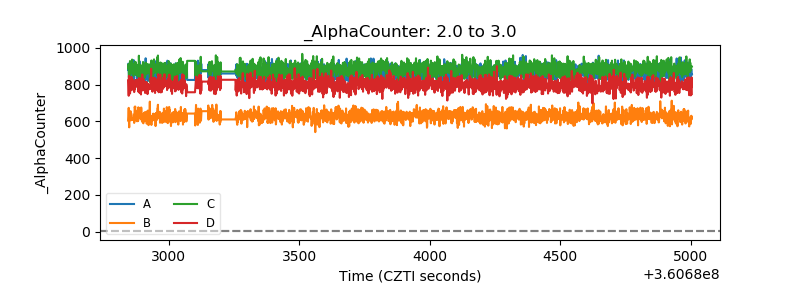

| Alpha Counter |  |
| _CPM_Rate |  |

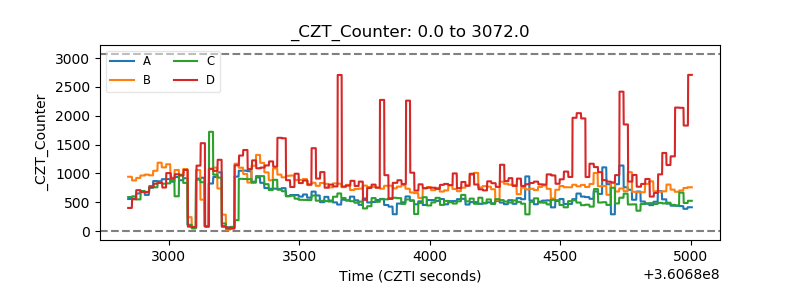

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

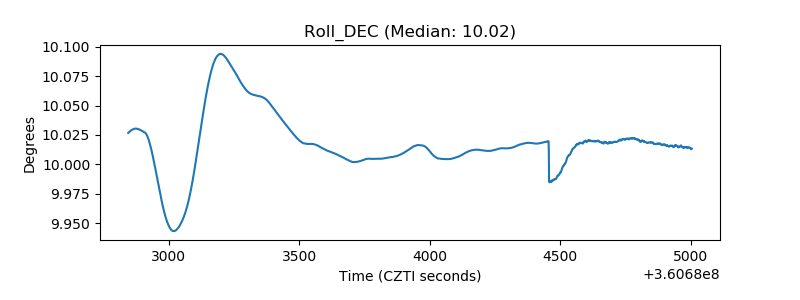

| _Roll_DEC |  |

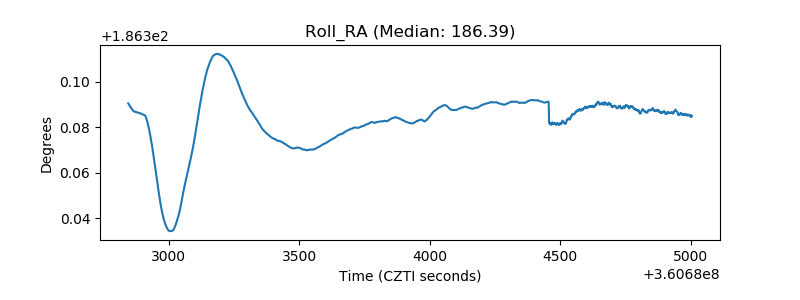

| _Roll_RA |  |

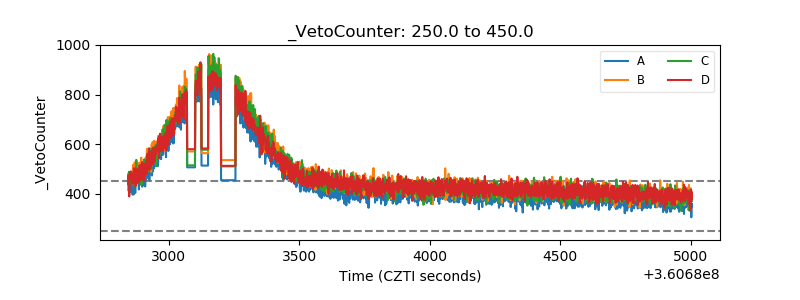

| Veto Counter |  |
